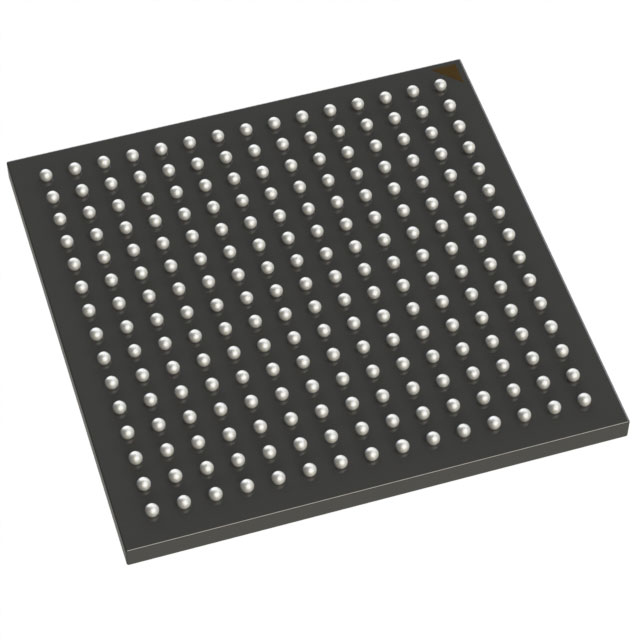

There is a 225-LFBGA, CSPBGA package that includes this component. Field-programmable gate array (FPGA) gates make up this kind of FPGA. Data transfers are more logical when there are 150 I/Os. A fundamental construction unit is made up of 23360 logic components or cells. A supply voltage of 1V is used to power it. This FPGA module can be mounted on the development board using a Surface Mount connector. The supply voltage needs to be between 0.95V and 1.05V for it to work. This is one of several different types of FPGAs in the Spartan-7 family. The system's operating temperature should stay between 0°C and 85°C TJ during operation. In order to conserve space, Tray contains a model of this FPGA. It contains 225 terminations altogether. This gadget provides 1658880 RAM bits. This FPGA module has been given a sizable quantity of RAM so that the software can run smoothly. The FPGA has an array of 1825 LABs/CLBs built in. Its fundamental building component consists of 3650 logic blocks (LABs). View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Expanding system I/O at a lower cost
Optional core voltages of 0.95 V or 1.0 V
Reduced overall power by 50% compared to 45 nm generation devices
Performance that is 30% faster than 45 nm generation devices
1.25 Gb/s or more LVDS
Vivado® HLx Design Suite WebPackTM-enabled
Vivado IP Integrator's correct-by-construction block-level design
IP reuse, a scalable, efficient design, and extensive tools
Carrier Ethernet Backhaul
Multi-function Printers
Multi-Axis Motor Control
Programmable Logic Controller
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
Video and night vision equipment
LTE radio and baseband
Multifunction printers
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1825 |
Number of Logic Elements/Cells | 23360 |
Total RAM Bits | 1658880 |
Number of I/O | 150 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 225-LFBGA, CSPBGA |
Supplier Device Package | 225-CSGA (13x13) |
Base Product Number | XC7S25 |
