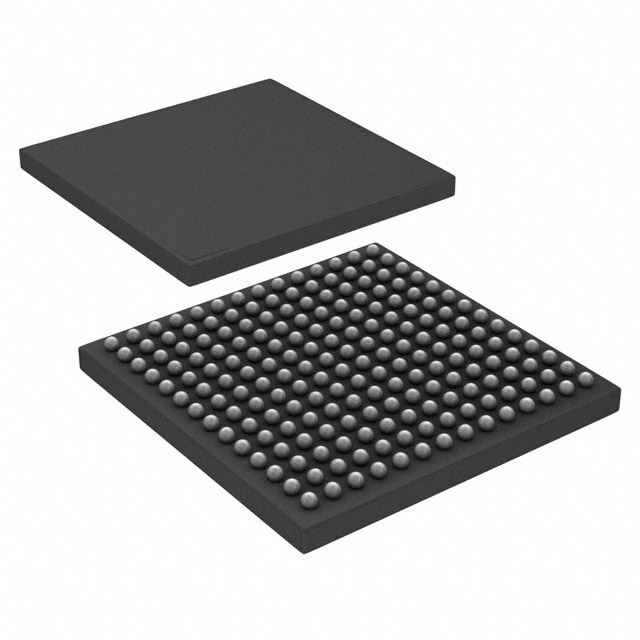

The XC7S25-2FTGB196C is a field programmable gate array (FPGA) from AMD Xilinx. It contains 100 I/Os and is packaged in a 196-CSBGA (15x15) size. Due to its 1825 LABs/CLBs and 23360 logic cells, it can be used for a variety of applications. The XC7S25-2FTGB196C runs on a voltage supply between 0.95V and 1.05V and has a total RAM capacity of 1658880 bits. The temperature range for this device, which is intended for surface mounting, is 0°C to 85°C (TJ). The XC7S25-2FTGB196C complies with RoHS3. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Integrated PCI Express® (PCIe) block: The integrated PCI Express® (PCIe) block supports up to x8 Gen3 Endpoint and Root Port designs.
Powerful clock management tiles (CMT): The powerful clock management tiles (CMT) integrate mixed-mode clock manager (MMCM) and phase-locked loop (PLL) blocks for high precision and minimal jitter.
36 Kb dual-port block RAM: The 36 Kb dual-port block RAM has integrated FIFO circuitry for on-chip data buffering.
MicroBlaze™ processor: The MicroBlaze™ processor is a soft processor that can be used to quickly deploy embedded processing.
High-performance SelectIO™ technology: The high-performance SelectIO™ technology supports DDR3 interfaces up to 1,866 Mb/s.
Dual 12-bit 1MSPS analog-to-digital converters: The dual 12-bit 1MSPS analog-to-digital converters with on-chip supply and heat sensors make up the user-configurable analog interface (XADC).
Software defined radio
Medical Endoscope
Small Cell Baseband
Industrial control
Defense applications
Industrial
Any-to-any connectivity
Sensor fusion
Embedded vision
Consumer
Automotive
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1825 |
Number of Logic Elements/Cells | 23360 |
Total RAM Bits | 1658880 |
Number of I/O | 100 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 196-LBGA, CSPBGA |
Supplier Device Package | 196-CSBGA (15x15) |
Base Product Number | XC7S25 |
