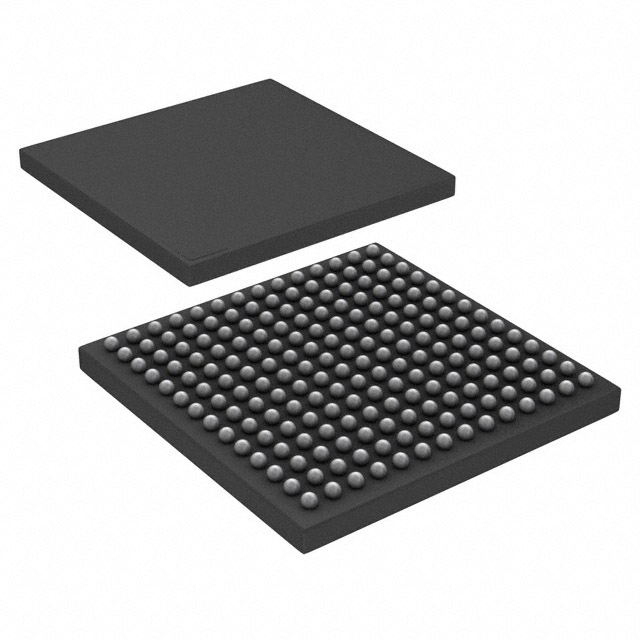

There is a 196-LBGA, CSPBGA package that includes this component. FIELD PROGRAMMABLE GATE ARRAY is used in this type of FPGA. To facilitate more effective data transfer, XC7S25-2FTGB196I has 100 I/Os. There are 23360 logic elements or cells in a basic building block. One volt is the supply voltage. The development board can be connected to this FPGA module via Surface Mount connections. The device needs a supply voltage between 0.95 and 1.05 volts to function. It is a subclass of FPGA that is a part of the Spartan-7 family. Operating temperatures should be kept between -40°C and 100°C TJ while in use. This FPGA model has been housed in Tray to conserve space. It has a total of 196 terminations in all. It is noteworthy to point out that this device has 1658880 bfpga electronics s of RAM. The RAM of the FPGA module is increased to 202.5kB to guarantee that the program runs normally. This FPGA is made up of 1825 LABs/CLBs in an array. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Integrated System Programming
Cost reduction for BOM
Total Power Decrease
MicroBlaze soft processor running over 200 DMIPs
Integrated ADC
Dedicated security features
Q-grade (-40°C to +125°C)
30% faster performance than 45nm generation devices
Up to 1.25Gb/s LVDS
25.6Gb/s peak DDR3-800 memory bandwidth
Medical diagnostics and imaging
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
Automotive driver assistance
Driver information
Infotainment
Video and night vision equipment
LTE radio and baseband
Multifunction printers
Flat Panel Displays
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1825 |
Number of Logic Elements/Cells | 23360 |
Total RAM Bits | 1658880 |
Number of I/O | 100 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 196-LBGA, CSPBGA |
Supplier Device Package | 196-CSBGA (15x15) |
Base Product Number | XC7S25 |
