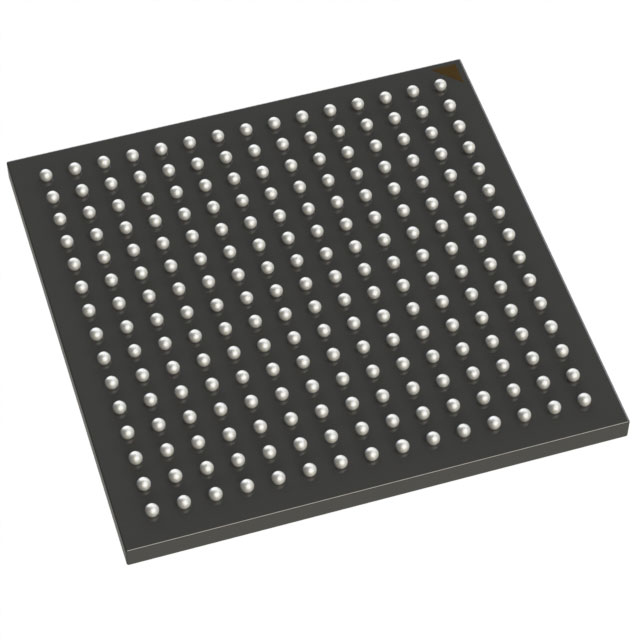

The AMD Xilinx XC7S25-L1CSGA225I is an XC7S25 series FPGA integrated circuit (IC). The IC is packaged in a 225-CSGA (13x13) surface-mountable package. It features 1,825 logic array blocks or cells and 150 input/output (I/O) pins. Additionally, the XC7S25-L1CSGA225I has 1,658,880 total bits of RAM and 23,360 logic elements/cells. It can operate between 0.92V and 0.98V of voltage and between -40°C and 100°C of temperature. Applications that call for programmable logic and high-speed processing should use the XC7S25-L1CSGA225I. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
For I/O connectivity, a high pin-count to logic ratio is used.
Integrated surveillance and security
Integrating discrete analog and monitoring circuitry with XADC and SYSMON
Optional core voltages of 0.95 V or 1.0 V
Performance that is 30% faster than 45 nm generation devices
1.25 Gb/s or more LVDS
Peak DDR3-800 memory bandwidth of 25.6 Gbps with a soft, adaptable memory controller
IP reuse, a scalable, efficient design, and extensive tools
Automotive
Any-to-any connectivity
Sensor fusion
Software defined radio
Programmable logic controller
Industrial
Consumer
Embedded vision
Machine vision camera
Portable ultrasound
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1825 |
Number of Logic Elements/Cells | 23360 |
Total RAM Bits | 1658880 |
Number of I/O | 150 |
Voltage - Supply | 0.92V ~ 0.98V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 225-LFBGA, CSPBGA |
Supplier Device Package | 225-CSGA (13x13) |
Base Product Number | XC7S25 |
