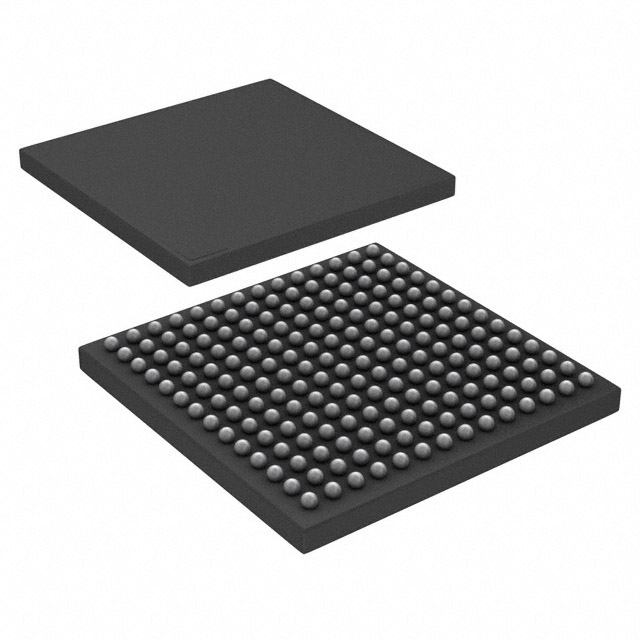

XC7S25-L1FTGB196I

XC7S25-L1FTGB196I Overview

The AMD Xilinx XC7S25-L1FTGB196I is an integrated circuit (IC) that belongs to the category of embedded field programmable gate arrays (FPGAs). 196-LBGA, CSPBGA is the name of the software package that includes this. There are 100 I/Os available for faster data transfer. There are 23360 logic elements or cells in a basic building block. You can utilize this FPGA module with your development board by connecting the Surface Mount connector. It needs a power supply that is between 0.92V and 0.98V in order to function. The FPGA is one type of FPGA and is a part of the Spartan-7 family. The operational temperature of the system should maintain between -40°C and 100°C TJ during operation. In order to conserve space, Tray contains a model of this FPGA. This gadget delivers 1658880 RAM bits, which is the full amount of RAM it has. A total of 1825 LABs/CLBs make up the FPGA. View Substitutes & Alternatives, datasheets, stock, pricing from Vemeko, as well as other FPGAs goods, at www.vemeko.com.

XC7S25-L1FTGB196I Features

• Block RAM with a built-in FIFO for on-chip data buffering, 36 Kb, twin ports.

• High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.

• A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.

• DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.

• Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.

• PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.

• Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.

XC7S25-L1FTGB196I Applications

• Industrial control

• Consumer electronics

• Medical devices

• Defense applications

• Consumer

• Automotive

• Any-to-any connectivity

• Embedded vision

• Programmable logic controller
