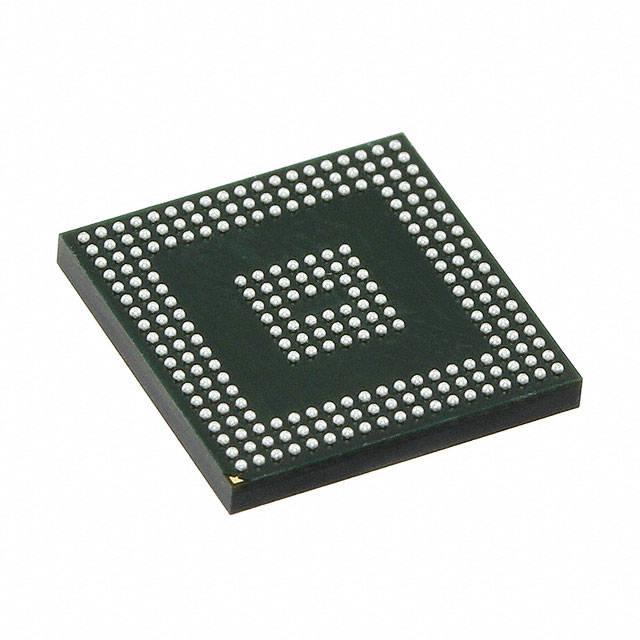

XC7S50-1CSGA324Q is contained in a 324-LFBGA, CSPBGA package and is available for download. Elements of the FIELD PROGRAMMABLE GATE ARRAY make up the XC7S50-1CSGA324Q. A basic construction block has 52160 logic cells or components. One volt serves as the power source for it. With a Surface Mount, this FPGA module can be connected to the development board. It requires a power supply between 0.95V and 1.05V to function. An FPGA type that is a member of the Spartan-7 family is the Spartan-7 series FPGA. When the device is in use, Fpga chips must be used to maintain the operating temperature within the range of -40°C and 125°C TJ. For space-saving purposes, Tray contains an FPGA model. There were 324 terminations overall. It's important to note that this gadget has 2764800 bfpga electronics of RAM. 4075 LABs/CLBs are present in the FPGA. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
With the MicroBlazeTM processor, implement embedded processing quickly.
Integrated block for Gen3 Endpoint and Root Port PCI Express® (PCIe) designs supporting x8.
There are several configuration choices, including the ability to use commonplace memories, 256-bit AES encryption, HMAC/SHA-256 authentication, and SEU detection and correction that are already built in.
Flip-chip packaging with easy family migration in a low-cost, wire-bond, bare-die, and high signal integrity form factor. Pb-free options are offered for all packages while Pb options are available for some packages.
28 nm, HKMG, HPL process, 1.0V core voltage process technology, and 0.9V core voltage option for even lower power are used in its design to achieve high performance while using the least amount of power.
Carrier Ethernet Backhaul
Multi-function Printers
Multi-Axis Motor Control
IP and Smart camera
Video and night vision equipment
LTE radio and baseband
Multifunction printers
Flat Panel Displays
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 4075 |
Number of Logic Elements/Cells | 52160 |
Total RAM Bits | 2764800 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 125°C (TJ) |
Package / Case | 324-LFBGA, CSPBGA |
Supplier Device Package | 324-CSGA (15x15) |
Base Product Number | XC7S50 |
