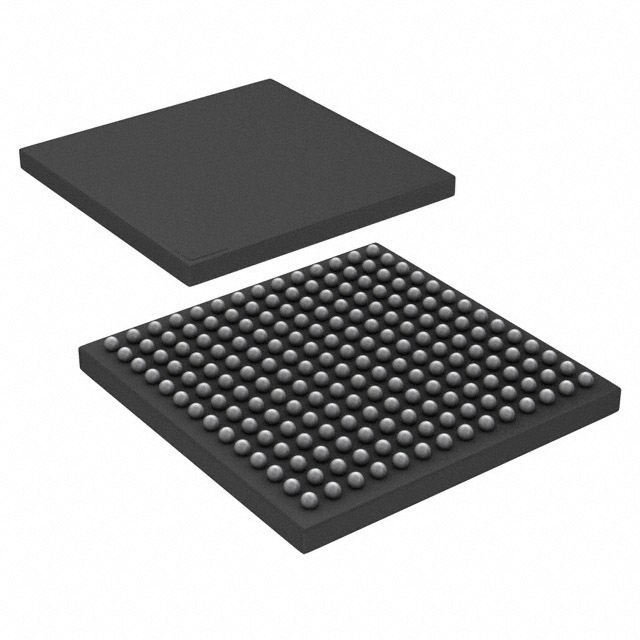

XC7S50-1FTGB196I is supplied in the 196-LBGA, CSPBGA package. Its 100 I/Os make data transport more effective. A computer's essential building block is its logic components or cells. It is driven by a 1V electrical supply voltage. Surface Mount connectors are used to connect FPGA modules to development boards. It requires a source voltage between 0.95V and 1.05V to function. The Spartan-7 series of FPGAs includes this kind of FPGA. Operating temperatures should be kept between -40°C and 100°C TJ while in use. There is an FPGA model contained in Tray in order to conserve space. There have been 196 terminations in total. XC7S50-1FTGB196I offers a total of 2764800 RAM bits. It has 337.5kB of RAM, which is more than enough to ensure that the software can function normally. The array of 4075 LABs/CLBs in Fpga electronics. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.
DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.
Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.
PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.
Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.
Flip-chip packaging that is low-cost, wire-bonded, bare-die, and high signal integrity and allows for simple family migration in the same package. Both Pb-free versions of all packages and Pb versions of some packages are offered.
With 28 nm, HKMG, HPL process, 1.0V core voltage process technology, and 0.9V core voltage option for even lower power, it is designed for maximum performance and lowest power.
Broadcast camera
Medical diagnostics and imaging
Industrial motor control, industrial networking, and machine vision
Video and night vision equipment
LTE radio and baseband
Multifunction printers
Flat Panel Displays
Set-Top Boxes
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 4075 |
Number of Logic Elements/Cells | 52160 |
Total RAM Bits | 2764800 |
Number of I/O | 100 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 196-LBGA, CSPBGA |
Supplier Device Package | 196-CSBGA (15x15) |
Base Product Number | XC7S50 |
