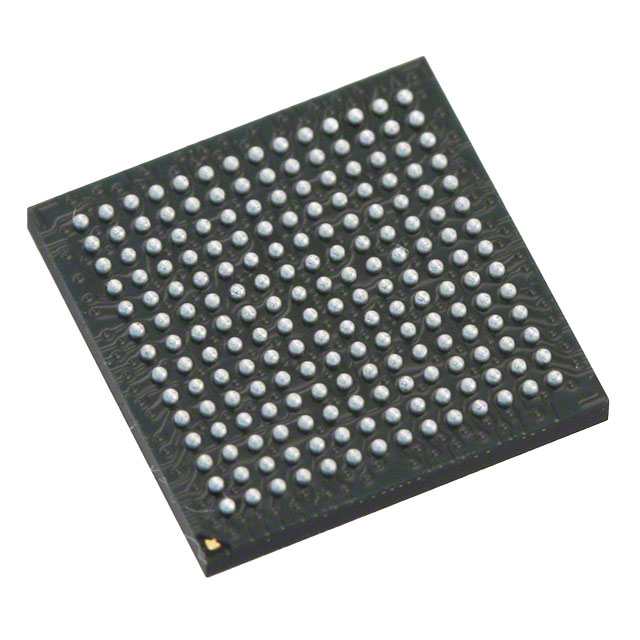

The XC7S6-1CPGA196I is a Spartan-7 FPGA manufactured by AMD Xilinx. It is a type of integrated circuit known as an embedded FPGA. The gadget is packaged in a tray and has a typical package size of 1. It has 100 I/Os and a surface mount mounting. The system comprises 6000 logic components/cells and 184320 RAM bits in total. The voltage supply required by the gadget ranges from 0.95V to 1.05V. The device can function in a temperature range of -40°C to 100°C and is temperature resistant. The gadget has an MSL level of 3 and an ECCN of EAR99. Due to the device's great performance and dependability, it is frequently employed in numerous electronic applications. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
MicroBlaze™ processor: The MicroBlaze™ processor is a soft processor that can be used to quickly deploy embedded processing.
High-performance SelectIO™ technology: The high-performance SelectIO™ technology supports DDR3 interfaces up to 1,866 Mb/s.
Integrated PCI Express® (PCIe) block: The integrated PCI Express® (PCIe) block supports up to x8 Gen3 Endpoint and Root Port designs.
Powerful clock management tiles (CMT): The powerful clock management tiles (CMT) integrate mixed-mode clock manager (MMCM) and phase-locked loop (PLL) blocks for high precision and minimal jitter.
Dual 12-bit 1MSPS analog-to-digital converters: The dual 12-bit 1MSPS analog-to-digital converters with on-chip supply and heat sensors make up the user-configurable analog interface (XADC).
Multifunction printers
Driver information
Broadcast camera
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
LTE radio and baseband
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of Logic Elements/Cells | 6000 |
Total RAM Bits | 184320 |
Number of I/O | 100 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 196-TFBGA, CSBGA |
Supplier Device Package | 196-CSPBGA (8x8) |
Base Product Number | XC7S6 |
