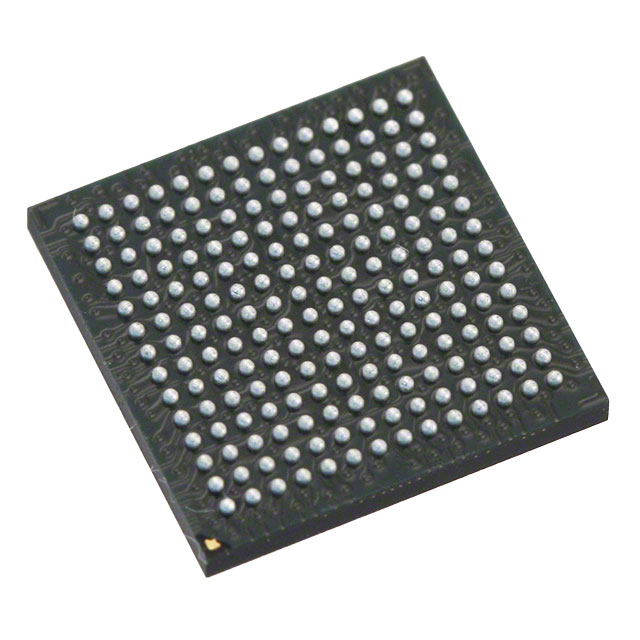

XC7S6-1CPGA196Q

XC7S6-1CPGA196Q Overview

FPGA of type XC7S6-1CPGA196Q consists of gates called FIELD PROGRAMMABLE GATE ARRAY. In order to achieve a more coherent data flow, a total of 100 I/Os are designed. There are 6000 logic elements or cells that come together to make a basic building block. It is driven by 1 volts. You can attach this FPGA module on the development board using a Surface attach connector. The gadget operates between 0.95V and 1.05V, which is its supply voltage. The Spartan-7 series of FPGAs includes a particular kind of FPGA known as a Spartan-7 series FPGA. When operating, the operating temperature should be maintained between -40°C and 125°C TJ. It has 196 terminations overall. This chip provides 184320 RAM bits. This FPGA contains 469 LABs/CLBs altogether. On 469 CLBs, its architecture is built. The supplier, 196-CPBGA (8x8), has a device package available. View Substitutes & Alternatives, datasheets, stock, pricing from Vemeko, as well as other FPGAs goods, at www.vemeko.com.

XC7S6-1CPGA196Q Features

• Block RAM with a built-in FIFO for on-chip data buffering, 36 Kb, twin ports.

• Utilize the MicroBlazeTM processor to quickly install embedded processing.

• High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.

• A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.

• DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.

• With 28 nm, HKMG, HPL process, 1.0V core voltage process technology, and 0.9V core voltage option for even lower power, it is designed for maximum performance and lowest power.

XC7S6-1CPGA196Q Applications

• Automotive

• Any-to-any connectivity

• Sensor fusion

• Embedded vision

• Software defined radio

• Programmable logic controller

• Machine vision camera

Product Availability Disclaimer

Product information on this page is provided for identification and sourcing reference purposes. A product listing does not indicate that VEMEKO currently holds physical inventory of the listed part number. Availability, manufacturer, source, date code, packaging, condition and lead time are confirmed separately at the quotation stage.

Trademark Notice

AMD, Xilinx, Zynq, Kintex, Virtex and other related trademarks are the property of Advanced Micro Devices, Inc. or its affiliates. VEMEKO is an independent electronic component sourcing company and is not represented as an authorized distributor of AMD unless expressly stated and documented for a specific transaction.

XC7S6-1CPGA196Q Specifications
