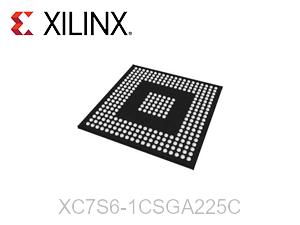

XC7S6-1CSGA225C

XC7S6-1CSGA225C Overview

The XC7S6-1CSGA225C is an embedded FPGA integrated circuit that belongs to the Integrated Circuits (ICs) category. The product is made by AMD and is a part of the Spartan-7 line. The product comes in a tray-shaped packaging, which typically contains one unit. The product has 6000 Logic Elements/Cells and 100 I/O. The product has 184320 RAM bits in total, and its voltage supply ranges from 0.95V to 1.05V. The product's package/case is designated as 225-LFBGA, CSPBGA, and the mounting type is Surface Mount. The working temperature range is 0°C to 85°C (TJ), and the supplier device package is 225-CSPBGA (13x13). The product's ECCN is EAR99, and 65% of it poses a fake threat to the open market. The product has an MSL Level of 3 (168 Hours) and an HTSUS of 8542.39.0001. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.

XC7S6-1CSGA225C Features

• Enabled by Vivado® HLx Design Suite WebPack™

• 1.0 V core voltage or 0.95 V core voltage option

• 50% lower total power than 45 nm generation devices

• 30% faster performance than 45 nm generation devices

• Correct-by-construction block-level design with Vivado IP Integrator

• Scalable optimized architecture, comprehensive tools, and IP reuse

XC7S6-1CSGA225C Applications

• Consumer electronics: Create TVs, Blu-ray players, and other devices.

• Medical devices: Create diagnostic equipment and drug delivery systems.

• Multi-function Printers: Spartan-7 FPGAs are used in multi-function printers to provide high-speed printing, scanning, and copying.

• Multi-Axis Motor Control: Spartan-7 FPGAs are used in multi-axis motor control applications to provide precise and efficient control of motors.

• Automotive driver assistance: Spartan-7 FPGAs are used in automotive driver assistance applications to provide features such as adaptive cruise control and lane departure warning.

XC7S6-1CSGA225C Specifications
