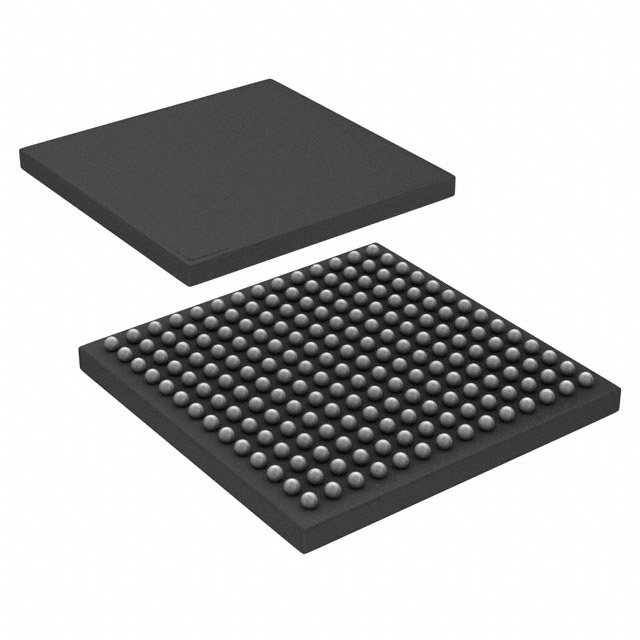

XC7S6-1FTGB196C FPGA Spartan-7 from Xilinx, Inc

XC7S6-1FTGB196C Overview

The AMD Xilinx 1323175-XC7S6-1FTGB196C is an integrated circuit designed for embedded FPGA applications. It is packaged in a tray and comes in a typical package of 1. The device contains 100 I/Os in total and is surface mountable. The system comprises 6000 logic elements/cells and 184320 RAM bits in total. The device's voltage supply ranges from 0.95V to 1.05V. The working temperature range of the 196-CSBGA (15x15) device package is 0°C to 85°C (TJ). The device has an MSL level of 3 (168 hours) and complies with ECCN EAR99. The gadget complies with ROHS3 regulations. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.

XC7S6-1FTGB196C Features

MicroBlaze soft IP processor
Integrated surveillance and security
Expanding system I/O at a lower cost
1.25 Gb/s or more LVDS
Peak DDR3-800 memory bandwidth of 25.6 Gbps with a soft, adaptable memory controller
Vivado IP Integrator's correct-by-construction block-level design
IP reuse, a scalable, efficient design, and extensive tools

XC7S6-1FTGB196C Applications

Medical Endoscope
Small Cell Baseband
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
Multi-Axis Motor Control
Machine Vision

XC7S6-1FTGB196C Specifications

Specification	Value
Category	Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array)
Mfr	AMD
Series	Spartan®-7
Package	Tray
Product Status	Active
DigiKey Programmable	Not Verified
Number of Logic Elements/Cells	6000
Total RAM Bits	184320
Number of I/O	100
Voltage - Supply	0.95V ~ 1.05V
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 85°C (TJ)
Package / Case	196-LBGA, CSPBGA
Supplier Device Package	196-CSBGA (15x15)
Base Product Number	XC7S6
