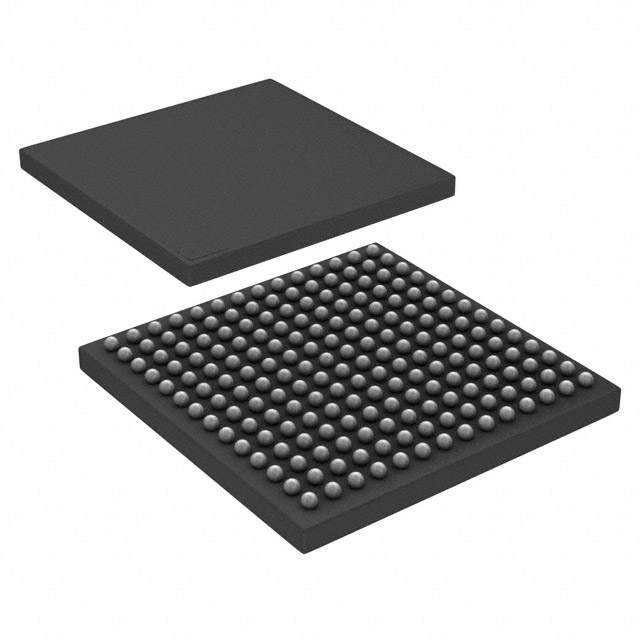

The AMD Xilinx 1323128-XC7S6-1FTGB196I is an FPGA (Field Programmable Gate Array) integrated circuit with a total of 6000 logic elements/cells. It has 100 I/O and 184320 RAM bits altogether. The voltage supply is provided in a 196-CSBGA (15x15) package and has a voltage range of 0.95V to 1.05V. This device can function between -40°C and 100°C (TJ), making it perfect for embedded systems. It complies with ROHS3 and is unaffected by REACH. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Utilize the MicroBlazeTM processor to quickly install embedded processing.
High-speed SelectIOTM technology that is compatible with DDR3 connections of up to 1,866 Mb/s.
High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.
A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.
DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.
Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.
LTE radio and baseband
Multifunction printers
Flat Panel Displays
Set-Top Boxes
Wireless Access
Industrial Ethernet and Motion Control
Automotive
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of Logic Elements/Cells | 6000 |
Total RAM Bits | 184320 |
Number of I/O | 100 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 196-LBGA, CSPBGA |
Supplier Device Package | 196-CSBGA (15x15) |
Base Product Number | XC7S6 |
