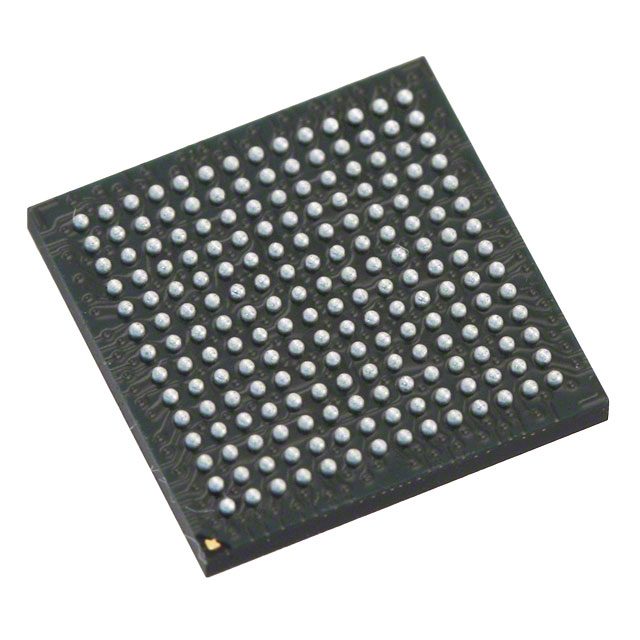

The AMD Xilinx XC7S6-2CPGA196I is an FPGA with 6000 logic elements/cells and 184320 total RAM bits. It is available in a 196-CSPBGA (8x8) packaging and has a voltage supply range of 0.95V to 1.05V. There are 100 I/Os on the device, which has a temperature range of -40°C to 100°C (TJ). It comes in a tray packing and is intended for usage in embedded systems. It has a surface mount for mounting. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
High-performance SelectIO™ technology: The high-performance SelectIO™ technology supports DDR3 interfaces up to 1,866 Mb/s.
Integrated PCI Express® (PCIe) block: The integrated PCI Express® (PCIe) block supports up to x8 Gen3 Endpoint and Root Port designs.
Powerful clock management tiles (CMT): The powerful clock management tiles (CMT) integrate mixed-mode clock manager (MMCM) and phase-locked loop (PLL) blocks for high precision and minimal jitter.
Dual 12-bit 1MSPS analog-to-digital converters: The dual 12-bit 1MSPS analog-to-digital converters with on-chip supply and heat sensors make up the user-configurable analog interface (XADC).
Multi-function Printers: Spartan-7 FPGAs are used in multi-function printers to provide high-speed printing, scanning, and copying.
Multi-Axis Motor Control: Spartan-7 FPGAs are used in multi-axis motor control applications to provide precise and efficient control of motors.
Automotive driver assistance: Spartan-7 FPGAs are used in automotive driver assistance applications to provide features such as adaptive cruise control and lane departure warning.
Medical diagnostics and imaging: Spartan-7 FPGAs are used in medical diagnostics and imaging applications to provide high-performance image processing and data analysis.
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of Logic Elements/Cells | 6000 |
Total RAM Bits | 184320 |
Number of I/O | 100 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 196-TFBGA, CSBGA |
Supplier Device Package | 196-CSPBGA (8x8) |
Base Product Number | XC7S6 |
