XC7S75-1FGGA676C

XC7S75-1FGGA676C Overview

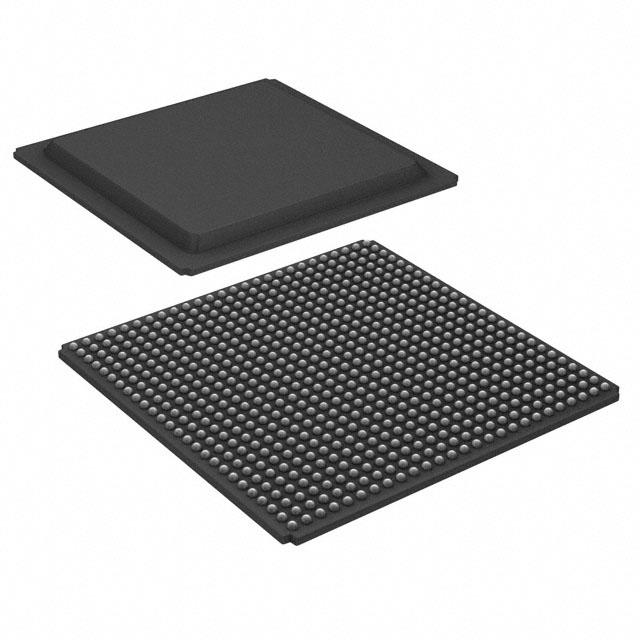

An integrated circuit (IC) by AMD Xilinx that is a member of the Embedded - FPGAs (Field Programmable Gate Array) family is the XC7S75-1FGGA676C. This IC has 76800 logic cells, 6000 LABs/CLBs, and 400 I/O. This IC's RAM has a total bit count of 4331520. This IC's voltage supply ranges from 0.95V to 1.05V. The operating temperature range is 0°C to 85°C (TJ). This IC is ROHS3 compliant and comes in the 676-FPBGA (27x27) supplier device packaging. This IC's open market has a 66% false threat. Visit www.vemeko.com to view Substitutes & Alternatives, datasheets, stock, price from Authorized Distributors, and more FPGAs products.

XC7S75-1FGGA676C Features

• DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.

• Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.

• Utilize the MicroBlaze™ processor to quickly install embedded processing.

• PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.

• Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.

XC7S75-1FGGA676C Applications

• Automotive: Information, help, and entertainment for the driver

• Support for numerous spectral bands and intelligent antennas in wireless communications

• Multiple wired communications protocols and context-sensitive network services

• Analytics, pre-processing of data, and Software Defined Networks (SDN) in data centers

• Adaptive video processing methods, object detection, and analytics for smarter vision

• M2M/Connected Control: Manufacturing that is flexible or adaptive, as well as quality, safety, and factory output ADAS

XC7S75-1FGGA676C Specifications
