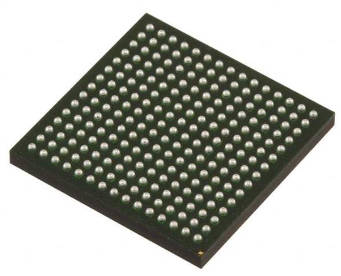

An embedded system-on-chip (SoC) IC from the Zynq-7000 family is the XC7Z010-L1CLG225I. A 225-LFBGA, 225-CSPBGA package/case, and 225-CSPBGA (13x13) supplier device package are used in its design. This integrated circuit (IC) contains a dual ARM Cortex-A9 MPCore with CoreSight core processor and is appropriate for usage in CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG applications. The Zynq®-7000 family is based on the Xilinx SoC architecture. These products integrate a feature-rich dual-core or single-core ARM®
Cortex™-A9 based processing system (PS) and 28 nm Xilinx programmable logic (PL) in a single device. The ARM Cortex-A9 CPUs are the heart of the PS and also include on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces.
Coherent multiprocessor support
ARMv7-A architecture
TrustZone® security
Thumb®-2 instruction set
Jazelle® RCT execution Environment Architecture
NEON™ media-processing engine
Single and double precision Vector Floating Point Unit (VFPU)
CoreSight™ and Program Trace Macrocell (PTM)
Timer and Interrupts
Three watchdog timers
One global timer
Two triple-timer counters
Wireless Access
Industrial Ethernet and Motion Control
Automotive
Automotive: Driver assistance, driver information, and infotainment
Wireless Communications: Support for multiple spectral bands and smart antennas
Wired Communications: Multiple wired communications standards and context-aware network services
Data Centers: Software Defined Networks (SDN), data pre-processing, and analytics
Smarter Vision: Evolving video-processing algorithms, object detection, and analytics
Connected Control/M2M: Flexible/adaptable manufacturing, factory throughput, quality, and safety
Specification | Value |
Category | Embedded System On Chip (SoC) |
Mfr | AMD |
Series | Zynq®-7000 |
Package | Tray |
Product Status | Active |
Architecture | MCU, FPGA |
Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
RAM Size | 256KB |
Peripherals | DMA |
Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
Speed | 667MHz |
Primary Attributes | Artix™-7 FPGA, 28K Logic Cells |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 225-LFBGA, CSPBGA |
Supplier Device Package | 225-CSPBGA (13x13) |
Number of I/O | 86 |
Base Product Number | XC7Z010 |
