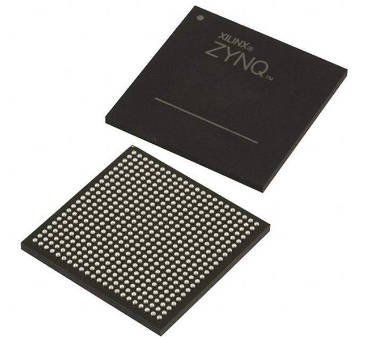

XC7Z012S-1CLG485C

XC7Z012S-1CLG485C Overview

The XC7Z012S-1CLG485C which belongs to Zynq-7000 SoC series is a System on Chip (SoC) integrated circuit from AMD Xilinx. It has a solitary 667MHz-capable ARM Cortex-A9 MPCore with CoreSight processor. XC7Z012S-1CLG485C features 256KB of RAM and supports CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG for connectivity. 150 I/Os and DMA peripherals are also included. The device has a temperature operating range of 0°C to 85°C and is packaged in a 485-CSPBGA. The XC7Z012S-1CLG485C has an ECCN of 3A991D and is RoHS3 compliant. The Zynq-7000 architecture enables implementation of custom logic in the PL and custom software in the PS. It allows for the realization of unique and differentiated system functions. The integration of the PS with the PL allows levels of performance that two-chip solutions (e.g., an ASSP with an FPGA) cannot match due to their limited I/O bandwidth, latency,and power budgets.

XC7Z012S-1CLG485C Features

• DDR3, DDR3L, DDR2, or LPDDR2 memories can be accessed by 16-bit or 32-bit interfaces on multiprotocol dynamic memory controllers.

• Support for ECC in 16-bit mode

• Using a single rank of 8-, 16-, or 32-bit wide memory, 1GB of address space

• interfaces for static memory

• 8-bit SRAM data bus that supports up to 64 MB

• Support for parallel NOR flash

• Support for ONFI1.0 NAND memory (1-bit ECC)

• SPI flash memory options include 1-bit, 2-bit, 4-bit (quad-SPI), and two quad-SPI (8-bit) models.

XC7Z012S-1CLG485C Applications

• Industrial motor control, industrial networking, and machine vision

• IP and Smart camera

• Video and night vision equipment

• LTE radio and baseband

• Multifunction printers

• Flat Panel Displays

• Set-Top Boxes

• Wireless Access

• Industrial Ethernet and Motion Control

• Automotive

• Automotive: Driver assistance, driver information, and infotainment

XC7Z012S-1CLG485C Specifications
