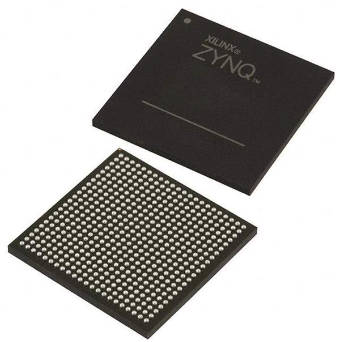

The AMD Xilinx XC7Z012S-1CLG485I is an Integrated Circuit (IC) belonging to the Embedded - System On Chip (SoC) family. One ARM Cortex-A9 MPCore with CoreSight processor, clocked at 667MHz, powers the XC7Z012S-1CLG485I. It features 84 standard packages, 256 KB of RAM, and 150 I/Os. Various electronic applications, such as automotive and industrial systems, call for the utilization of the XC7Z012S-1CLG485I. It has USB OTG, Ethernet, and CANbus as connectivity options. The XC7Z012S-1CLG485I adheres to RoHS3 regulations. Although the PS is the same across all Zynq-7000 devices, they differ in terms of their PL and I/O resources. The Zynq-7000 and Zynq-7000S SoCs can thus be used for a variety of applications, such as: IP and Smart camera; Automotive driving assistance, driver information, and infotainment; Broadcast camera; Industrial motor control, industrial networking, and machine vision; and so forth.
DDR3, DDR3L, DDR2, or LPDDR2 memories can be accessed by 16-bit or 32-bit interfaces on multiprotocol dynamic memory controllers.
Support for ECC in 16-bit mode
Using a single rank of 8-, 16-, or 32-bit wide memory, 1GB of address space
interfaces for static memory
8-bit SRAM data bus that supports up to 64 MB
Support for parallel NOR flash
Support for ONFI1.0 NAND memory (1-bit ECC)
SPI flash memory options include 1-bit, 2-bit, 4-bit (quad-SPI), and two quad-SPI (8-bit) models.
Automotive driver assistance
Driver information
Infotainment
Broadcast camera
Medical diagnostics and imaging
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
Video and night vision equipment
Specification | Value |
Category | Embedded System On Chip (SoC) |
Mfr | AMD |
Series | Zynq®-7000 |
Package | Tray |
Product Status | Active |
Architecture | MCU, FPGA |
Core Processor | Single ARM® Cortex®-A9 MPCore™ with CoreSight™ |
RAM Size | 256KB |
Peripherals | DMA |
Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
Speed | 667MHz |
Primary Attributes | Artix™-7 FPGA, 55K Logic Cells |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 485-LFBGA, CSPBGA |
Supplier Device Package | 485-CSPBGA (19x19) |
Number of I/O | 150 |
Base Product Number | XC7Z012 |
