XC7Z012S-2CLG485E

XC7Z012S-2CLG485E Overview

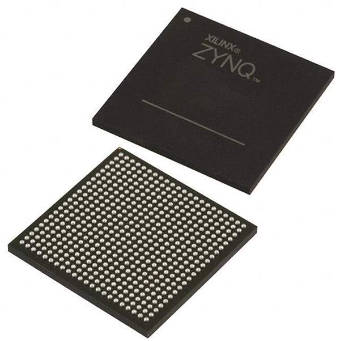

The XC7Z012S-2CLG485E which belongs to Zynq-7000 SoC family series is an integrated circuit manufactured by Xilinx Inc. It has a high level of popularity and a stable supply and demand situation. 33 percent of threats on the open market are false. The Zynq-7000 series component has a single ARM Cortex-A9 MPCore, 55K Logic Cells, 766MHz 484-CSPBGA (19x19) features, and CoreSight System On Chip (SOC) IC series Artix-7 FPGA. The component is appropriate for electronic devices that demand high-end performance and has a package of 484-LFBGA, CSPBGA. The Xilinx SoC architecture serves as the foundation for the Zynq®-7000 family. These products combine a 28 nm Xilinx programmable logic (PL) chip and a feature-rich dual-core or single-core ARM® CortexTM-A9 processor system (PS) into a single unit. The ARM Cortex-A9 CPUs, which also have on-chip memory, external memory interfaces, and a wide range of peripheral connectivity interfaces, constitute the PS's brains.

XC7Z012S-2CLG485E Features

• Multiprotocol dynamic memory controller

• 16-bit or 32-bit interfaces to DDR3, DDR3L, DDR2, or LPDDR2 memories

• ECC support in 16-bit mode

• 1GB of address space using single rank of 8-, 16-, or 32-bit-wide memories

• Static memory interfaces

• 8-bit SRAM data bus with up to 64 MB support

• Parallel NOR flash support

• ONFI1.0 NAND flash support (1-bit ECC)

• 1-bit SPI, 2-bit SPI, 4-bit SPI (quad-SPI), or two quad-SPI (8-bit) serial NOR flash

XC7Z012S-2CLG485E Applications

• Medical Endoscope

• Small Cell Baseband

• Professional Cameras

• Machine Vision

• Carrier Ethernet Backhaul

• Multi-function Printers

• Wireless Access

• Industrial Ethernet and Motion Control

• Automotive

Product Availability Disclaimer

Product information on this page is provided for identification and sourcing reference purposes. A product listing does not indicate that VEMEKO currently holds physical inventory of the listed part number. Availability, manufacturer, source, date code, packaging, condition and lead time are confirmed separately at the quotation stage.

Trademark Notice

AMD, Xilinx, Zynq, Kintex, Virtex and other related trademarks are the property of Advanced Micro Devices, Inc. or its affiliates. VEMEKO is an independent electronic component sourcing company and is not represented as an authorized distributor of AMD unless expressly stated and documented for a specific transaction.

XC7Z012S-2CLG485E Specifications
