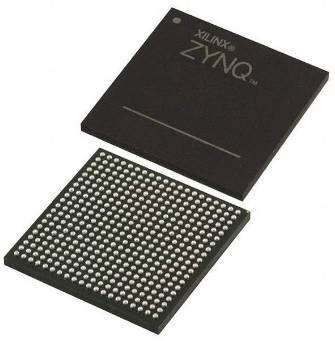

XC7Z014S-1CLG400C

XC7Z014S-1CLG400C Overview

Xilinx AMD XC7Z014S-1CLG400C is an embedded IC in the field-programmable gate array category categorized under the Zynq-7000 SoC series. A single ARM Cortex-A9 MPCore processor with CoreSight, the AMD Xilinx XC7Z014S-1CLG400C runs at 667MHz. With 65K logic cells and 256KB of RAM, it has an MCU and FPGA design. The CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG connection, and DMA peripherals are all built within the device. The device runs between 0°C and 85°C and has a 400-CSPBGA (17x17) supplier device packaging. The gadget complies with ROHS3 and has the ECCN 3A991D. It is the perfect gadget for system-on-chip (SoC), embedded systems, and other high-processing-power applications. The ARM Cortex-A9 CPUs, which also have on-chip memory, external memory interfaces, and a wide range of peripheral connectivity interfaces, constitute the PS's brains.

XC7Z014S-1CLG400C Features

• IEEE Std 1588 version and two 10/100/1000 tri-speed Ethernet MAC peripherals that comply with IEEE Std 802.3 Support 2.0

• Ability to use a DMA scatter-gather

• Acceptance of the 1588 Rev. PTP frames two interfaces for GMII, RGMII, and SGMII

• Two USB 2.0 OTG devices that can each accommodate up to 12 Endpoints

• IP core of a USB 2.0 compatible device supports low-speed, full-speed, high-speed, and on-the-go modes.

• USB host 8-bit ULPI external PHY interface that is Intel EHCI compliant

• Two fully compatible CAN 2.0B CAN bus interfaces

• External PHY interface that complies with the CAN 2.0-A and CAN 2.0-B standards and ISO 118981-1

XC7Z014S-1CLG400C Applications

• IP and Smart camera

• Video and night vision equipment

• LTE radio and baseband

• Multifunction printers

• Flat Panel Displays

• Set-Top Boxes

• Wireless Access

• Industrial Ethernet and Motion Control

• Automotive
