XC7Z014S-1CLG484C

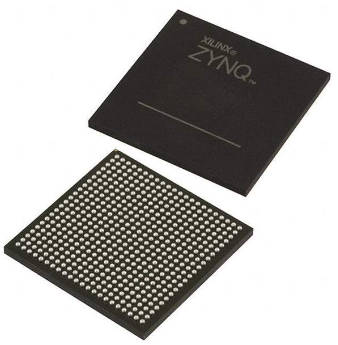

XC7Z014S-1CLG484C Overview

The AMD XC7Z014S-1CLG484C is an embedded IC belonging to the field-programmable gate arrays category from Xilinx. It has a single 667MHz ARM Cortex-A9 MPCore processor with CoreSight. XC7Z014S-1CLG484C features 256KB of RAM, 200 I/Os, and connectivity for CANbus, Ethernet, EBI/EMI, I2C, MMC/SD/SDIO, SPI, and UART/USART. The FPGA belongs to the Artix-7 family and has 65K logic cells. The temperature range of this product, which is 484-CSPBGA (19x19), is 0°C to 85°C (TJ). The gadget complies with ROHS3 and is not subject to REACH. XC7Z014S-1CLG484C provides the performance, power, and usability traditionally associated with ASIC and ASSPs while maintaining the flexibility and scalability of an FPGA. The variety of Zynq-7000 family devices enables designers to target both high-performance and cost-sensitive applications from a single platform using conventional techniques.

XC7Z014S-1CLG484C Features

• Two controllers that are SD/SDIO 2.0/MMC3.31 compliant

• three peripheral chip choices and two full-duplex SPI ports

• Two UARTs with high speed (up to 1 Mb/s)

• two I2C interfaces, both master and slave

• GPIO has four 32-bit banks, of which the PS I/O can utilize up to 54 bits (one bank of 32 bits and one bank of 22 bits) and the Programmable Logic can use up to 64 bits (up to two banks of 32 bits).

• Up to 54 flexible multiplexed I/O (MIO) pin assignments for peripheral devices

• Support for essential masters using ARM AMBA® AXI-based high-bandwidth communication for latency and bandwidth management inside PS and between PS and PL

XC7Z014S-1CLG484C Applications

• Automotive driver assistance, driver information, and infotainment

• Broadcast camera

• Industrial motor control, industrial networking, and machine vision

• IP and Smart camera

• LTE radio and baseband

• Medical diagnostics and imaging

• Multifunction printers

• Video and night vision equipment

XC7Z014S-1CLG484C Specifications
