XC7Z014S-2CLG484I

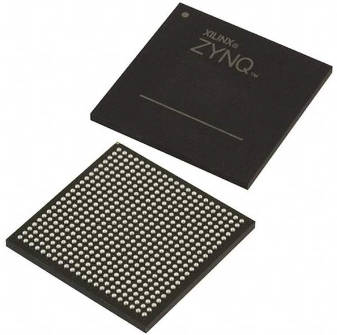

Images are for reference only.

XC7Z014S-2CLG484I

Manufacturer:
Xilinx
Package/Case:
484-LFBGA, CSPBGA
RoHS:
Lifecycle:
Active
Stock Resource:
Factory Excess Stock / Franchised Distributor
Datasheet:
XC7Z014S-2CLG484I
Product Categories:
Embedded - System On Chip (SoC)
Description:
Integrated Circuits (ICs) Embedded System On Chip (SoC) Single ARM® Cortex®-A9 MPCore™ with CoreSight™ Zynq®-7000 65K Logic Cells 256KB 484-CSPBGA
Do you want to buy more and get a better price for this part? Please fill in the short form below:
quantity
email
contact
company
Telephone
country
content

XC7Z014S-2CLG484I Overview

An integrated circuit from the Zynq-7000 family is the XC7Z014S-2CLG484I. It runs at 766MHz and contains a single ARM Cortex-A9 MPCore with CoreSight. The container is a tray, and the usual container size is 84. It offers CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG as communication options. The RAM size is 256KB, and there are 200 I/Os. The Artix-7 FPGA with 65K logic cells is its main feature. The case and package numbers are 484-LFBGA, CSPBGA, and 484-CSPBGA (19x19), respectively, for the supplier device. It is not REACH-affected and has a temperature range of -40°C to 100°C (TJ).



XC7Z014S-2CLG484I Features

  • ECC support in 16-bit mode

  • 1GB of address space using single rank of 8-, 16-, or 32-bit-wide memories

  • Static memory interfaces

  • 8-bit SRAM data bus with up to 64 MB support

  • Parallel NOR flash support

  • ONFI1.0 NAND flash support (1-bit ECC)

  • 1-bit SPI, 2-bit SPI, 4-bit SPI (quad-SPI), or two quad-SPI (8-bit) serial NOR flash



XC7Z014S-2CLG484I Applications

  • Automotive driver assistance, driver information, and infotainment

  • Broadcast camera

  • Industrial motor control, industrial networking, and machine vision

  • IP and Smart camera

  • LTE radio and baseband

  • Medical diagnostics and imaging

  • Multifunction printers

  • Video and night vision equipment


XC7Z014S-2CLG484I Specifications

SpecificationValue
CategoryIntegrated Circuits (ICs) Embedded System On Chip (SoC)
MfrAMD
SeriesZynq®-7000
PackageTray
Product StatusActive
ArchitectureMCU, FPGA
Core ProcessorSingle ARM® Cortex®-A9 MPCore™ with CoreSight™
Flash Size-
RAM Size256KB
PeripheralsDMA
ConnectivityCANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed766MHz
Primary AttributesArtix™-7 FPGA, 65K Logic Cells
Operating Temperature-40°C ~ 100°C (TJ)
Package / Case484-LFBGA, CSPBGA
Supplier Device Package484-CSPBGA (19x19)
Number of I/O200
Base Product NumberXC7Z014
