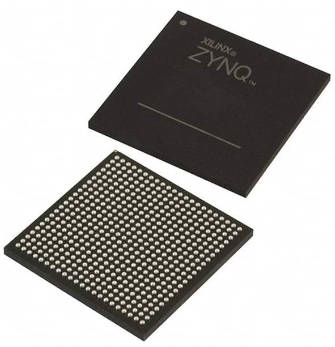

A versatile and potent electrical component, the Xilinx Zynq-7000 series system on chip (SOC) IC is made to provide high performance and dependability. The 74K logic cells and twin ARM Cortex-A9 MPCoreTM with CoreSightTM processors in this IC enable it to handle even the most demanding workloads. The 484-CSPBGA (19x19) package of the XC7Z015-3CLG485E type allows it to function in a temperature range of 0°C to 100°C (TJ). In addition to CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, and UART/USART, this IC's 130 I/O provides a wide range of connectivity possibilities. For usage in integrated circuits (ICs) and other electrical devices that need high-performance SOC ICs, this premium electronic component is perfect. With a production lead time of 51 weeks, this IC is a popular choice among manufacturers and is widely used in a variety of electronic applications.
The XC7Z015-3CLG485E is based on the Xilinx SoC architecture. These products integrate a feature-rich dual-core or single-core ARM® Cortex™-A9 based processing system (PS) and 28 nm Xilinx programmable logic (PL) in a single device. The ARM Cortex-A9 CPUs are the heart of the PS and also include on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces.
Multiprotocol dynamic memory controller
16-bit or 32-bit interfaces to DDR3, DDR3L, DDR2, or LPDDR2 memories
ECC support in 16-bit mode
1GB of address space using single rank of 8-, 16-, or 32-bit-wide memories
Static memory interfaces
8-bit SRAM data bus with up to 64 MB support
Parallel NOR flash support
ONFI1.0 NAND flash support (1-bit ECC)
1-bit SPI, 2-bit SPI, 4-bit SPI (quad-SPI), or two quad-SPI (8-bit) serial NOR flash
Automotive driver assistance
Driver information
Infotainment
Broadcast camera
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
LTE radio and baseband
Medical diagnostics and imaging
Multifunction printers
Video and night vision equipment
Specification | Value |
Category | Integrated Circuits (ICs) Embedded System On Chip (SoC) |
Mfr | AMD |
Series | Zynq®-7000 |
Package | Tray |
Product Status | Active |
Architecture | MCU, FPGA |
Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
Flash Size | - |
RAM Size | 256KB |
Peripherals | DMA |
Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
Speed | 866MHz |
Primary Attributes | Artix™-7 FPGA, 74K Logic Cells |
Operating Temperature | 0°C ~ 100°C (TJ) |
Package / Case | 485-LFBGA, CSPBGA |
Supplier Device Package | 485-CSPBGA (19x19) |
Number of I/O | 130 |
Base Product Number | XC7Z015 |
