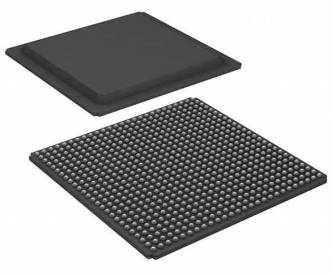

XC7Z030-1FFG676C

XC7Z030-1FFG676C Overview

XC7Z030-1FFG676C is an integrated circuit that falls under the embedded system on chip (SoC) subcategory. It belongs to the Zynq-7000 series and is made by AMD Xilinx. This IC runs at 667MHz and has two ARM Cortex-A9 MPCores with CoreSight. XC7Z030-1FFG676C comes with a tray package and a typical package of 1. It can connect to devices using CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG, among other protocols. There are 130 I/O ports and a DMA peripheral on it. It has a flash size of and a RAM size of 256KB. Its key characteristics are Kintex-7 FPGA and 125K logic cells, and it has a distinctive design of MCU and FPGA. XC7Z030-1FFG676C has a package/case of 676-BBGA, FCBGA and a supplier device package of 676-FCBGA (27x27). It has an operating temperature range of 0°C to 85°C (TJ) and is ECCN: 3A991D.

XC7Z030-1FFG676C Features

• Multiprotocol dynamic memory controller

• 16-bit or 32-bit interfaces to DDR3, DDR3L, DDR2, or LPDDR2 memories

• ECC support in 16-bit mode

• 1GB of address space using single rank of 8-, 16-, or 32-bit-wide memories

• Static memory interfaces

• 8-bit SRAM data bus with up to 64 MB support

• Parallel NOR flash support

• ONFI1.0 NAND flash support (1-bit ECC)

• 1-bit SPI, 2-bit SPI, 4-bit SPI (quad-SPI), or two quad-SPI (8-bit) serial NOR flash

XC7Z030-1FFG676C Applications

• Automotive driver assistance

• Driver information

• Infotainment

• Broadcast camera

• Industrial motor control, industrial networking, and machine vision

• IP and Smart camera

• LTE radio and baseband

• Medical diagnostics and imaging

• Multifunction printers

• Video and night vision equipment

XC7Z030-1FFG676C Specifications
