XC7Z030-1SBG485C

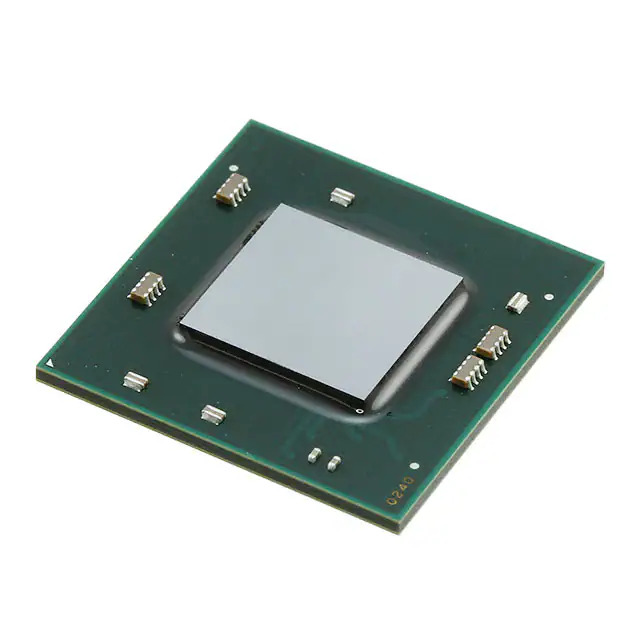

XC7Z030-1SBG485C Overview

The Zynq-7000 series of integrated circuits, including the XC7Z030-1SBG485C, is made for embedded system-on-chip (SoC) applications. Developers may optimize performance and power consumption thanks to the dual ARM Cortex-A9 MPCore processor's CoreSight technology. The CPU is 667MHz fast and comes in a tray with a single standard box. The device comes with DMA peripherals and is connected to CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG. The system contains 256 KB of RAM, 130 I/Os, and no flash memory. The device has an MCU and FPGA architecture, and it primarily resembles a Kintex-7 FPGA with 125K logic cells. The device is packaged in a 484-FBGA, FCBGA package with a supplier device package of 484-FCBGA (19x19). It operates in a temperature range of 0°C to 85°C (TJ) and has an ECCN of EAR99.

The Xilinx SoC architecture serves as the foundation for this XC7Z030-1SBG485C. These products combine a 28 nm Xilinx programmable logic (PL) chip and a feature-rich dual-core or single-core ARM® CortexTM-A9 processor system (PS) into a single unit. The ARM Cortex-A9 CPUs, which also have on-chip memory, external memory interfaces, and a wide range of peripheral connectivity interfaces, constitute the PS's brains.

XC7Z030-1SBG485C Features

• Two SD/SDIO 2.0/MMC3.31 compliant controllers

• Two full-duplex SPI ports with three peripheral chip selects

• Two high-speed UARTs (up to 1 Mb/s)

• Two master and slave I2C interfaces

• GPIO with four 32-bit banks, of which up to 54 bits can be used with the PS I/O (one bank of 32b and one bank of 22b) and up to 64 bits (up to two banks of 32b) connected to the Programmable Logic

• Up to 54 flexible multiplexed I/O (MIO) for peripheral pin assignments

• High-bandwidth connectivity within PS and between PS and PL

• ARM AMBA® AXI based

• QoS support on critical masters for latency and bandwidth control

XC7Z030-1SBG485C Applications

• Automotive driver assistance, driver information, and infotainment

• Broadcast camera

• Industrial motor control, industrial networking, and machine vision

• IP and Smart camera

• LTE radio and baseband

• Medical diagnostics and imaging

• Multifunction printers

• Video and night vision equipment

XC7Z030-1SBG485C Specifications
