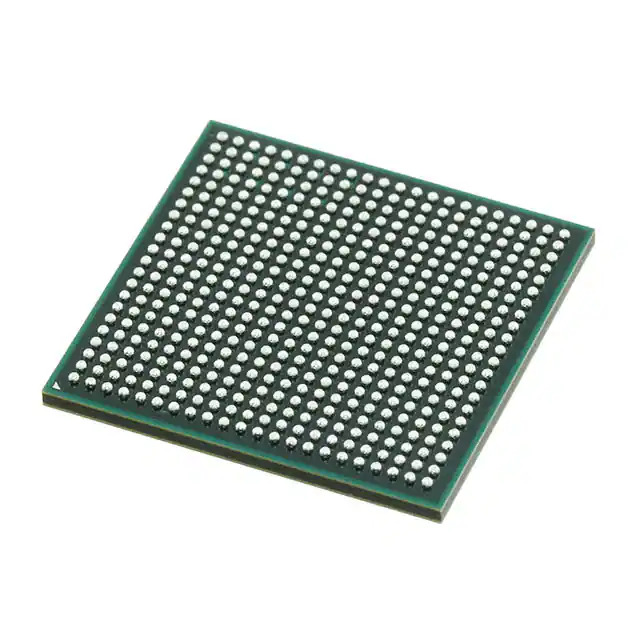

XC7Z030-1SBG485I

XC7Z030-1SBG485I Overview

The XC7Z030-1SBG485I provides the performance, power, and usability traditionally associated with ASIC and ASSPs while maintaining the flexibility and scalability of an FPGA. The variety of Zynq-7000 family devices enables designers to target both high-performance and cost-sensitive applications from a single platform using conventional techniques. Although the PS is the same across all Zynq-7000 devices, they differ in terms of their PL and I/O resources.

Custom software and logic can be implemented in the PL and PS using the XC7Z030-1SBG485I architecture. It enables the execution of distinctive and differentiating system functions. Due to their constrained I/O bandwidth, latency, and power budgets, two-chip systems (such as an ASSP with an FPGA) cannot achieve the performance levels possible with the PS and PL integrated together.

For the Zynq-7000 family, XC7Z030-1SBG485I provides a wide range of soft IP. The PS and PL peripherals have standalone and Linux device drivers available. For software, hardware, and systems engineers, the Vivado® Design Suite development environment facilitates a quick product development process. In addition to Xilinx's current PL ecosystem, adoption of the ARM-based PS also adds a wide range of outside tools and IP sources.

XC7Z030-1SBG485I Features

• 2.5 DMIPS/MHz per CPU

• CPU frequency: Up to 1 GHz

• Coherent multiprocessor support

• ARMv7-A architecture

• TrustZone® security

• Thumb®-2 instruction set

• Jazelle® RCT execution Environment Architecture

• NEON™ media-processing engine

• Single and double precision Vector Floating Point Unit (VFPU)

• CoreSight™ and Program Trace Macrocell (PTM)

• Timer and Interrupts

• Multiprotocol dynamic memory controller

• 16-bit or 32-bit interfaces to DDR3, DDR3L, DDR2, or LPDDR2 memories

• ECC support in 16-bit mode

• 1GB of address space using single rank of 8-, 16-, or 32-bit-wide memories

• Static memory interfaces

XC7Z030-1SBG485I Applications

• Automotive driver assistance, driver information, and infotainment

• Broadcast camera

• Industrial motor control, industrial networking, and machine vision

• IP and Smart camera

• LTE radio and baseband

• Medical diagnostics and imaging

• Multifunction printers

• Video and night vision equipment

Product Availability Disclaimer

Product information on this page is provided for identification and sourcing reference purposes. A product listing does not indicate that VEMEKO currently holds physical inventory of the listed part number. Availability, manufacturer, source, date code, packaging, condition and lead time are confirmed separately at the quotation stage.

Trademark Notice

AMD, Xilinx, Zynq, Kintex, Virtex and other related trademarks are the property of Advanced Micro Devices, Inc. or its affiliates. VEMEKO is an independent electronic component sourcing company and is not represented as an authorized distributor of AMD unless expressly stated and documented for a specific transaction.

XC7Z030-1SBG485I Specifications
