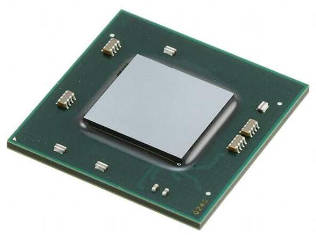

The Xilinx Inc. XC7Z030-2SBG485I is a Zynq-7000 series Field Programmable Gate Array (FPGA) IC that has two ARM Cortex-A9 MPCores with CoreSight System On Chips (SOCs), a Kintex-7 FPGA, and 125K logic cells. The gadget has a temperature range of -40°C to 100°C (TJ) and runs at an 800MHz speed. It has CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG connectivity and is available in a 484-FCBGA (19x19) packaging. The supply and demand for the XC7Z030 are in balance because it is a very popular product. The Xilinx SoC architecture serves as the foundation for the Zynq®-7000 family. These products combine a 28 nm Xilinx programmable logic (PL) chip and a feature-rich dual-core or single-core ARM® CortexTM-A9 processor system (PS) into a single unit. The ARM Cortex-A9 CPUs, which also have on-chip memory, external memory interfaces, and a wide range of peripheral connectivity interfaces, constitute the PS's brains.
Look-up tables (LUT)
Flip-flops
Cascadeable adders
True Dual-Port
Up to 72 bits wide
Configurable as dual 18 Kb block RAM
18 x 25 signed multiply
48-bit adder/accumulator
25-bit pre-adder
Supports LVCMOS, LVDS, and SSTL
1.2V to 3.3V I/O
Programmable I/O delay and SerDes
Medical Endoscope
Small Cell Baseband
ADAS
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
Specification | Value |
Category | Embedded System On Chip (SoC) |
Mfr | AMD |
Series | Zynq-7000 SoC |
Package | Tray |
Product Status | Active |
Architecture | MCU, FPGA |
Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
RAM Size | 256KB |
Peripherals | DMA |
Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
Speed | 800MHz |
Primary Attributes | Kintex™-7 FPGA, 125K Logic Cells |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 484-FBGA, FCBGA |
Supplier Device Package | 484-FCBGA (19x19) |
Number of I/O | 130 |
Base Product Number | XC7Z030 |
