XC7Z035-1FBG676I

XC7Z035-1FBG676I Overview

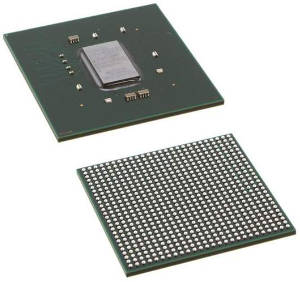

The XC7Z035-1FBG676I from Xilinx Inc. is a Kintex-7 FPGA device featuring twin ARM Cortex-A9 MPCore processors with CoreSight. It contains 130 I/O pins and 275K logic cells. The gadget has a maximum operating frequency of 667 MHz and runs on a single 1V power source. It is appropriate for usage in a variety of applications, including as industrial control, embedded processing, and high-performance computing. The addition of an application processor makes it possible to support advanced operating systems, such Linux. There are several common operating systems for the Cortex-A9 processor available for the Zynq-7000 family as well.

The user of these devices can shut down the PL for power management if necessary because the PS and the PL are on distinct power domains. Because the PS processors always start up first, PL configuration may be done from a software perspective. As software running on the CPU controls PL setup, it boots similarly to an ASSP.

XC7Z035-1FBG676I Features

• High-bandwidth connectivity within PS and between PS and PL

• ARM AMBA® AXI based

• QoS support on critical masters for latency and bandwidth control

• 32 KB Level 1 4-way set-associative instruction and data caches (independent for each CPU)

• 512 KB 8-way set-associative Level 2 cache (shared between the CPUs)

• Byte-parity support

• On-chip boot ROM

• 256 KB on-chip RAM (OCM)

• Byte-parity support

XC7Z035-1FBG676I Applications

• Broadcast camera

• Medical diagnostics and imaging

• Industrial motor control, industrial networking, and machine vision

• IP and Smart camera

• Video and night vision equipment

• LTE radio and baseband

• Multifunction printers

• Flat Panel Displays

XC7Z035-1FBG676I Specifications
