XC7Z035-2FFV676E

XC7Z035-2FFV676E Overview

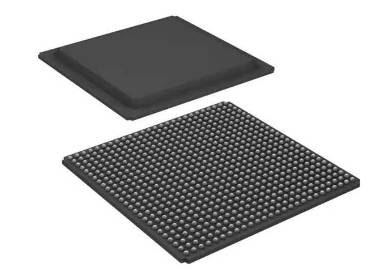

This XC7Z035-2FFV676E's processor(s) are dual ARM Cortex-A9 MPCore with CoreSight. This system on a chip has been given the package number 676-BBGA, FCBGA by its maker. This XC7Z035-2FFV676E’s processor offers users a high degree of performance with 256KB RAM integrated. This SoC design uses an MCU and FPGA combination for its internal architecture. This kind of system on chip SoC is a part of the Zynq-7000 family. The typical working temperature for this SoC should be between 0°C and 100°C TJ. One thing regarding the security of this SoC is that it combines 275K Logic Cells with a Kintex-7 FPGA. This SoC system on a chip has a cutting-edge Bulk packaging and offers exceptional performance.

The XC7Z035-2FFV676E provides the performance, power, and usability traditionally associated with ASIC and ASSPs while maintaining the flexibility and scalability of an FPGA. The variety of Zynq-7000 family devices enables designers to target both high-performance and cost-sensitive applications from a single platform using conventional techniques. Although the PS is the same across all Zynq-7000 devices, they differ in terms of their PL and I/O resources.

XC7Z035-2FFV676E Features

• Two 10/100/1000 tri-speed Ethernet MAC peripherals with IEEE Std 802.3 and IEEE Std 1588 revision 2.0 support

• Scatter-gather DMA capability

• Recognition of 1588 rev. 2 PTP frames

• GMII, RGMII, and SGMII interfaces

• Two USB 2.0 OTG peripherals, each supporting up to 12 Endpoints

• USB 2.0 compliant device IP core

• Supports on-the-go, high-speed, full-speed, and low-speed modes

• Intel EHCI compliant USB host

• 8-bit ULPI external PHY interface

• Two full CAN 2.0B compliant CAN bus interfaces

• CAN 2.0-A and CAN 2.0-B and ISO 118981-1 standard compliant

• External PHY interface

XC7Z035-2FFV676E Applications

• Automotive driver assistance, driver information, and infotainment

• Broadcast camera

• Industrial motor control, industrial networking, and machine vision

• IP and Smart camera

• LTE radio and baseband

• Medical diagnostics and imaging

• Multifunction printers

• Video and night vision equipment

XC7Z035-2FFV676E Specifications
