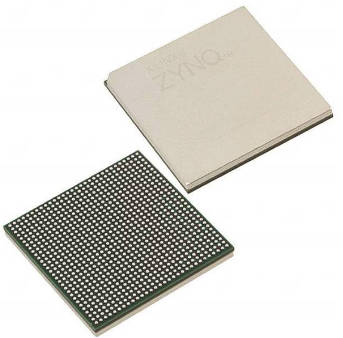

The XC7Z045-1FFG900I is a Kintex-7 FPGA from Xilinx that can be applied to professional cameras machine vision, and carrier ethernet Backhaul. It has a dual ARM Cortex-A9 MPCore with CoreSight processor that runs at a frequency of 667MHz and contains 350K logic cells. XC7Z045-1FFG900I has connectivity choices for CAN, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG. A DMA peripheral is also included in the XC7Z045-1FFG900I, which has an operating temperature range of -40°C to 100°C. This FPGA is offered in a 900-BBGA, FCBGA packaging, has a moderate level of demand and limited availability. The Xilinx SoC architecture serves as the foundation for the Zynq®-7000 family. These products combine a 28 nm Xilinx programmable logic (PL) chip and a feature-rich dual-core or single-core ARM® CortexTM-A9 processor system (PS) into a single unit. The ARM Cortex-A9 CPUs, which also have on-chip memory, external memory interfaces, and a wide range of peripheral connectivity interfaces, constitute the PS's brains.
32 KB Level 1 4-way set-associative instruction and data caches (independent for each CPU)
512 KB 8-way set-associative Level 2 cache (shared between the CPUs)
Byte-parity support
On-chip boot ROM
256 KB on-chip RAM (OCM)
Byte-parity support
8-bit SRAM data bus with up to 64 MB support
Parallel NOR flash support
ONFI1.0 NAND flash support (1-bit ECC)
1-bit SPI, 2-bit SPI, 4-bit SPI (quad-SPI), or two quad-SPI (8-bit) serial NOR flash
ADAS
Medical Endoscope
Small Cell Baseband
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
Multi-Axis Motor Control
Specification | Value |
Category | Embedded System On Chip (SoC) |
Mfr | AMD |
Series | Zynq-7000 SoC |
Package | Tray |
Product Status | Active |
Architecture | MCU, FPGA |
Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
RAM Size | 256KB |
Peripherals | DMA |
Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
Speed | 667MHz |
Primary Attributes | Kintex™-7 FPGA, 350K Logic Cells |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 900-BBGA, FCBGA |
Supplier Device Package | 900-FCBGA (31x31) |
Number of I/O | 130 |
Base Product Number | XC7Z045 |
