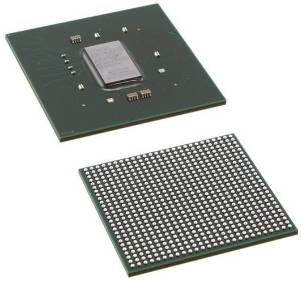

The XC7Z045-2FBG676CES from AMD Xilinx is an embedded-system-on-chip (SoC) product that belongs to the Zynq-7000 series. It has two 800MHz dual-core ARM Cortex-A9 MPCore processors with CoreSight. In the open market, this product has a medium level of appeal and a 59% fake danger. It has a package of Tray and a level of 4 MSL. The XC7Z045-2FBG676CES features 256KB of RAM and 130 I/Os. This SoC component has 130 total I/Os. A search for XC7Z045 will turn up system on chips with comparable specifications and uses. The operating frequency of the wireless SoC is 800MHz. This SoC concept is built on top of the ARM core architecture. The SoC computing can start up at 0°C, which is all that is required.The SoC system on chip's maximum operational temperature during design is 85°C.
2.5 DMIPS/MHz per CPU
CPU frequency: Up to 1 GHz
Coherent multiprocessor support
ARMv7-A architecture
TrustZone® security
Thumb®-2 instruction set
Jazelle® RCT execution Environment Architecture
NEON™ media-processing engine
Single and double precision Vector Floating Point Unit (VFPU)
CoreSight™ and Program Trace Macrocell (PTM)
Timer and Interrupts
Three watchdog timers
One global timer
Two triple-timer counters
Multifunction printers
Flat Panel Displays
Set-Top Boxes
Wireless Access
Industrial Ethernet and Motion Control
Automotive
Automotive: Driver assistance, driver information, and infotainment
Wireless Communications: Support for multiple spectral bands and smart antennas
Specification | Value |
Category | Embedded System On Chip (SoC) |
Mfr | AMD |
Series | Zynq®-7000 |
Package | Tray |
Product Status | Obsolete |
Architecture | MCU, FPGA |
Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
RAM Size | 256KB |
Peripherals | DMA |
Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
Speed | 800MHz |
Primary Attributes | Kintex™-7 FPGA, 350K Logic Cells |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 676-BBGA, FCBGA |
Supplier Device Package | 676-FCBGA (27x27) |
Number of I/O | 130 |
Base Product Number | XC7Z045 |
