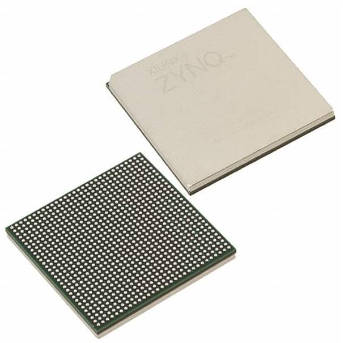

An embedded system on chip (SoC) from the Zynq-7000 family is the XC7Z045-2FFG900C. It has two ARM Cortex-A9 MPCoreTM processors with CoreSightTM and runs at 800 MHz. The SoC is designed for a variety of electronic applications, including automotive, industrial, and consumer electronics. A 350K logic cell KintexTM-7 FPGA and 256KB of RAM are features of the XC7Z045-2FFG900C. The SoC, which has a working temperature range of 0 to 85 degrees Celsius, is made by AMD Xilinx. It is a trustworthy, high-performance component that performs admirably in a variety of electronic systems. Therefore, a wide range of applications, including machine vision, broadcast cameras, industrial motor control, and driver information and infotainment systems for autos, can utilize the Zynq-7000 and Zynq-7000S SoCs.
Two 10/100/1000 tri-speed Ethernet MAC peripherals with
IEEE Std 802.3 and IEEE Std 1588 revision 2.0 support
Scatter-gather DMA capability
Recognition of 1588 rev. 2 PTP frames
GMII, RGMII, and SGMII interfaces
Two USB 2.0 OTG peripherals, each supporting up to 12 Endpoints
USB 2.0 compliant device IP core
Supports on-the-go, high-speed, full-speed, and low-speed modes
Intel EHCI compliant USB host
8-bit ULPI external PHY interface
Two full CAN 2.0B compliant CAN bus interfaces
CAN 2.0-A and CAN 2.0-B and ISO 118981-1 standard compliant
External PHY interface
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
Video and night vision equipment
LTE radio and baseband
Multifunction printers
Flat Panel Displays
Set-Top Boxes
Wireless Access
Specification | Value |
Category | Embedded System On Chip (SoC) |
Mfr | AMD |
Series | Zynq-7000 SoC |
Package | Tray |
Product Status | Obsolete |
Architecture | MCU, FPGA |
Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
RAM Size | 256KB |
Peripherals | DMA |
Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
Speed | 800MHz |
Primary Attributes | Kintex™-7 FPGA, 350K Logic Cells |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 900-BBGA, FCBGA |
Supplier Device Package | 900-FCBGA (31x31) |
Number of I/O | 130 |
Base Product Number | XC7Z045 |
