Home > Product > Xilinx, Inc > Zynq-7000 SoC
XC7Z045-2FFG900E

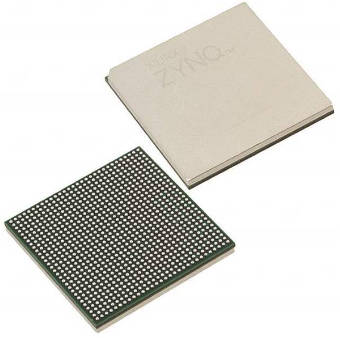

Images are for reference only.

XC7Z045-2FFG900E

Manufacturer:
Xilinx
Package/Case:
FCBGA-900
RoHS:
Lifecycle:
Active
Stock Resource:
Factory Excess Stock / Franchised Distributor
Datasheet:
XC7Z045-2FFG900E
Product Categories:
System On Chip (SoC)
Description:
Embedded System On Chip (SoC) Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ Zynq-7000 SoC 350K Logic Cells 256KB 900-FCBGA
Do you want to buy more and get a better price for this part? Please fill in the short form below:
quantity
email
contact
company
Telephone
country
content

XC7Z045-2FFG900E Overview

The Xilinx Inc. XC7Z045-2FFG900E is a dual ARM Cortex-A9 MPCore with CoreSight Zynq-7000 series field programmable gate array (FPGA) IC. It is frequently used in electronic circuits. XC7Z045-2FFG900E runs in a temperature range of 0°C to 100°C and has a total of 130 I/Os. 350K logic cells and the Kintex-7 FPGA are its main features. The Zynq®-7000 family is based on the Xilinx SoC architecture. These products integrate a feature-rich dual-core or single-core ARM® Cortex-A9 based processing system (PS) and 28 nm Xilinx programmable logic (PL) in a single device. The ARM Cortex-A9 CPUs are the heart of the PS and also include on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces.



XC7Z045-2FFG900E Features

  • Multiprotocol dynamic memory controller

  • 16-bit or 32-bit interfaces to DDR3, DDR3L, DDR2, or LPDDR2 memories

  • ECC support in 16-bit mode

  • 1GB of address space using single rank of 8-, 16-, or 32-bit-wide memories

  • Static memory interfaces

  • 8-bit SRAM data bus with up to 64 MB support

  • Parallel NOR flash support

  • ONFI1.0 NAND flash support (1-bit ECC)

  • 1-bit SPI, 2-bit SPI, 4-bit SPI (quad-SPI), or two quad-SPI (8-bit) serial NOR flash



XC7Z045-2FFG900E Applications

  • Automotive driver assistance

  • Driver information

  • Infotainment

  • Broadcast camera

  • Medical diagnostics and imaging

  • Industrial motor control, industrial networking, and machine vision

  • IP and Smart camera

  • Video and night vision equipment


XC7Z045-2FFG900E Specifications

SpecificationValue
CategoryEmbedded System On Chip (SoC)
MfrAMD
SeriesZynq-7000 SoC
PackageTray
Product StatusActive
ArchitectureMCU, FPGA
Core ProcessorDual ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size256KB
PeripheralsDMA
ConnectivityCANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed800MHz
Primary AttributesKintex™-7 FPGA, 350K Logic Cells
Operating Temperature0°C ~ 100°C (TJ)
Package / Case900-BBGA, FCBGA
Supplier Device Package900-FCBGA (31x31)
Number of I/O130
Base Product NumberXC7Z045
