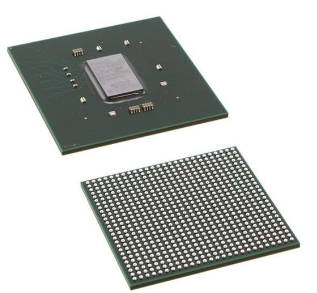

The AMD XC7Z045-L2FBG676I is Zynq-7000 SoC series with a dual ARM Cortex-A9 MPCore™ with CoreSight™ core processor. It operates at 800 MHz and adheres to the package tray standard. There are 130 I/Os in this component, which belongs to the Zynq-7000 series. XC7Z045-L2FBG676I has a 350K logic cell Kintex-7 FPGA with an MCU and FPGA architecture. The package/case has the part numbers 676-BBGA, FCBGA and 676-FCBGA (27x27) from the supplier. Except the operating temperature range or unless otherwise noted, all the DC and AC electrical parameters are the same for a particular speed grade (that is, the timing characteristics of a -1 speed grade industrial device are the same as for a -1 speed grade commercial device).
2.5 DMIPS per CPU per MHz
CPU frequency: 1 GHz or higher
Support for coherent multiprocessors
Architecture ARMv7-A
TrustZone® protection
Instruction manual for Thumb®-2
Execution of Jazelle® RCT Architecture of the Environment
media-processing engine NEONTM
Vector Floating Point Units (VFPU) with single and double precision
Program Trace Macrocell (PTM) with CoreSightTM
Interrupts and a timer
three timers for watchdogs
One universal timer
A pair of triple-timer counters
Data Centers: Software Defined Networks (SDN), data pre-processing, and analytics
Smarter Vision: Evolving video-processing algorithms, object detection, and analytics
Connected Control/M2M: Flexible/adaptable manufacturing, factory throughput, quality, and safety
Automotive: Driver assistance, driver information, and infotainment
Wireless Communications: Support for multiple spectral bands and smart antennas
Wired Communications: Multiple wired communications standards and context-aware network services
Specification | Value |
Category | Embedded System On Chip (SoC) |
Mfr | AMD |
Series | Zynq-7000 SoC |
Package | Tray |
Product Status | Active |
Architecture | MCU, FPGA |
Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
RAM Size | 256KB |
Peripherals | DMA |
Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
Speed | 800MHz |
Primary Attributes | Kintex™-7 FPGA, 350K Logic Cells |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 676-BBGA, FCBGA |
Supplier Device Package | 676-FCBGA (27x27) |
Number of I/O | 130 |
Base Product Number | XC7Z045 |
