Home > Product > Intel / Altera Corporation > MAX V CPLDS
5M80ZT100C5N

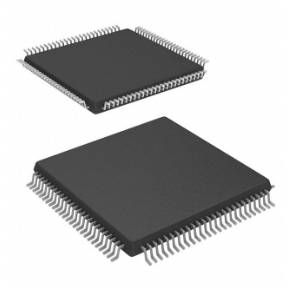

Images are for reference only.

5M80ZT100C5N

Manufacturer:
INTEL
Package/Case:
TQFP-100
RoHS:
Lifecycle:
Active
Availability:
On Request
This product page is provided for component identification and sourcing reference. Listing of a part number does not indicate current physical inventory. Availability, source, date code, packaging, condition and lead time are subject to confirmation at the time of quotation.
Datasheet:
Product Categories:
Programmable Logic ICs
Description:
CPLD MAX V Family IC 64 Macro Cells 7.5 ns 118.3MHz 1.8V 100-Pin TQFP Tray
Need this part? Submit an inquiry and our sourcing team will check current availability, source, date code, packaging and lead time.
quantity
email
contact
company
Telephone
country
content

5M80ZT100C5N Overview

The ground-breaking 5M80ZT100C5N design includes a wide range of logic components (LEs organized in logic array blocks (LABs)), memory resources (non-volatile flash and LE RAM), global signals (clocks or control signals), and a significant number of user I/Os. The MultiTrack interconnect maximizes performance and minimizes power consumption by using the most efficient, direct connection between input, logic, and output. MultiVolt I/O capabilities offered by this 5M80ZT100C5N allow multiple I/O banks to work with different I/O voltages and connect to other devices without any problems. The device core is powered by a single 1.8-V external supply (VCCINT), which enables CPLD operation with low dynamic and standby power.

5M80ZT100C5N Features

• Byte-parity support

• Multiprotocol dynamic memory controller

• Static memory interfaces

• Timer and Interrupts

5M80ZT100C5N Applications

• Automotive driver assistance

• Driver information

• Infotainment

• Broadcast camera

• Medical diagnostics and imaging

• Industrial motor control, industrial networking, and machine vision

• IP and Smart camera


5M80ZT100C5N Specifications

SpecificationValue
SeriesMAX V
Memory TypeFlash
Number of Macrocells64
Maximum Operating Frequency152 MHz
Delay Time7.5 ns
Number of Programmable I/Os79
Operating Supply Voltage1.8 V
Maximum Operating Temperature+ 70 C
Minimum Operating Temperature0 C
Package / CaseTQFP-100
Mounting StyleSMD/SMT
PackagingTray
Supply Current25 uA
Supply Voltage - Max1.89 V
Supply Voltage - Min1.71 V
