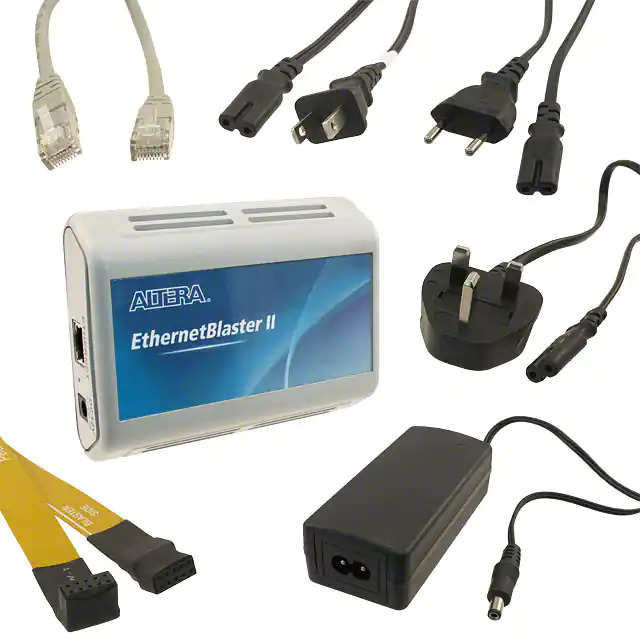

The Altera EthernetBlaster II connects to a standard Ethernet network port with an RJ-45 connector to communicate with client systems. Multiple developers can access Altera devices simultaneously and download design changes directly to the device, increasing productivity and enabling multiple design iterations in quick succession.
Communicate with client systems using the TCP/IP protocol. Supports both static and dynamic IP addressing. You can also interface directly using a standard CAT 5 UTP 4-pair patch cable.
You can also programme serial configuration devices, including EPCS1, EPCS4, EPCS16, EPCS64, and EPCS128 devices. In addition, the EthernetBlaster II communications cable supports target systems using 3.3-V LVTTL/LVCMOS and single-ended I/O standards from 3.3 V down to 1.2 V.
You can use the EthernetBlaster II communications cable to download configuration data to the following Altera devices:
- Cyclone series FPGAs
- Arria series FPGAs
- MAX series CPLDs
- Stratix series FPGAs
| Specification | Value |
|---|---|
| Product | Programming Cable |
| Interface Type | Ethernet, IDC-10 |
| Manufacturer | Altera (Intel® Programmable Solutions Group) |
| Type | Programmer (In-Circuit/In-System) |
| Operating Supply Voltage | 12 V |
| Series | Altera Programmer Accessories |
| Product Category | Programmer Accessories |
| Subcategory | Embedded Solutions |
| Supported Device Technology | CPLD/FPGA |
| Development Software | Nios II/Quartus II |
| For Use With | ACEX, APEX, Arria, Cyclone, FLEX, Mercury, Stratix , Excalibur-FPGAs, MAX-CPLDs Development Boards |
| Operating Systems | Win XP|Win Vista|Win NT 4.0|Win 2000|Solaris 9|Solaris 8|Solaris 7|Solaris 2.7|Solaris 2.6|Solaris 10|Red Hat Linux 9|Red Hat Linux 8.0|Red Hat Linux 7.3|Red Hat Enterprise Linux WS 3.0|Red Hat Enterprise Linux 5|Red Hat Enterprise Linux 4|HP-UX 11.0 |
| Windows | Win 2000|Win XP|Win Vista|Win NT 4.0 |
| Linux | Red Hat Linux 9|Red Hat Linux 8.0|Red Hat Linux 7.3|Red Hat Enterprise Linux WS 3.0|Red Hat Enterprise Linux 5|Red Hat Enterprise Linux 4 |
