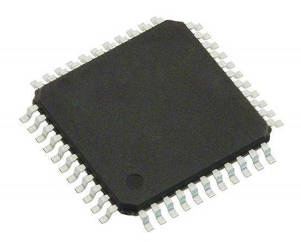

XC17V16VQ44I

XC17V16VQ44I Overview

The XC17V16VQ44I PROM may configure a Xilinx FPGA through the FPGA serial configuration mode interface. The FPGA generates a configuration clock while it is in Master Serial mode, which is used to operate the PROM. Shortly after the rising clock edge, data emerges on the PROM DATA output pin, which is connected to the FPGA DIN pin. The FPGA generates the appropriate amount of clock pulses to complete the configuration. Once configured, it deactivates the PROM. When the FPGA is in slave serial mode, both the PROM and the FPGA must be clocked by an incoming signal.

A Xilinx FPGA can optionally be configured utilizing the FPGA Parallel (SelectMAP) configuration mode interface by XC17V16VQ44I. The FPGA creates the configuration clock that drives the PROM while it is in Master SelectMAP mode. An external, free-running oscillator produces the configuration clock that powers the PROM and the FPGA when the FPGA is in Slave SelectMAP mode. On the DATA (D0-D7) pins of the PROMs, data is available following the rising configuration clock (CCLK) edge.

XC17V16VQ44I Features

• A read-only memory called a one-time programmable (OTP) device is used to store the configuration bitstreams of Xilinx® FPGA devices.

• FPGA interface that is simple

• For storing longer or numerous bitstreams, cascadable

• Reset polarity can be programmed to be either active High or active Low to work with various FPGA solutions.

• Process for low-power CMOS floating gates

• supply voltage of 3.3V

• 20-year life data retention that is guaranteed

• small plastic packaging are readily available: VO8, PC20, VO8, PC44, and SO20(1)

• Support for programming from top programmer manufacturers

• employing the ISE® FoundationTM and ISE WebPACKTM software to provide design support.

• Devices with two configuration modes: XC17V16 and XC17V08(1)

XC17V16VQ44I Applications

Configuration FPGAs have companion devices called PROMs (Programmable Read-Only Memory), which are used to store the user's chosen configuration for the latter while the former is shut down. XC17V16VQ44I has the below applications:

• Medical diagnostics and imaging

• Industrial motor control, industrial networking, and machine vision

• IP and Smart camera

• Video and night vision equipment

• LTE radio and baseband

• Multifunction printers
