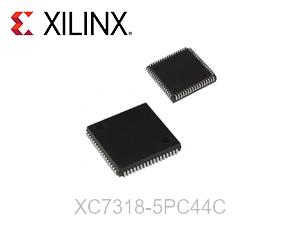

XC7318-5PC44C

XC7318-5PC44C Overview

The XC7318-5PC44C Devices have a special Dual-Block design that allows for high density capability via High Density Function Blocks and/or high speed operations via Fast Function Blocks. For crucial decoding and ultrafast state machine applications, Fast Function Blocks (FFBs) offer fast, pin-to-pin speed and logic throughput. For adders, accumulators, wide functions, state machines needing a large number of product terms, and other types of complicated logic, High-Density Function Blocks (FBs) offer the maximum logic density and system-level functionality to construct complex functions with predictable time. The Universal Interconnect Matrix (UIM) ensures 100% interconnectivity of all internal processes. For any routing path across the UIM, this interconnect architecture offers consistent, brief connectivity delays. Constant connectivity delays, independent of logic arrangement within the chip, simplify device timing and ensure design performance. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.

XC7318-5PC44C Features

• Erasable Programmable Logic Devices (EPLDs) with high performance: 5 / 7.5 ns pin-to-pin speeds on all fast inputs; maximum clock frequency of 167 MHz

• Fast function blocks and high-density function blocks comprise the advanced dual-block architecture (XC7354, XC7372, XC73108, XC73144).

• Interconnect matrix at 100%

• High-speed arithmetic carry network with 18-bit accumulators operating at 43 to 61 MHz and a 1 ns ripple-carry latency per bit

• Several separate clocks

• Every input can be set to be registered, latched, or direct.

XC7318-5PC44C Applications

• Medical devices

• Defense applications

• The embedded OEM

• Software defined radio

• Any-to-any connectivity

• Programmable logic controller

XC7318-5PC44C Specifications
