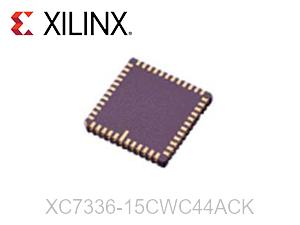

XC7336-15CWC44ACK

XC7336-15CWC44ACK Overview

The XC7336-15CWC44ACK is a high performance CPLD providing general purpose logic integration. It consists of four PAL-like 24V9 Fast Function Blocks interconnected by the 100% populated Universal Interconnect Matrix (UIMTM). The XC7336-15CWC44ACK is designed in 0.8 u CMOS EPROM technology, in speed grades ranging from 5 to 15 ns. The XC7336Q is also available now, providing lower power consumption in-10,-12 and-15 ns speed grades. The XC7336-15CWC44ACK comes in pin-grid array (PGA), ball-grid array (BGA), and quad flat pack (QFP) packaging, as well as plastic and ceramic leaded chip carriers. Windowed ceramic packaging for design prototypes and one-time programmable plastic packaging for high production volumes are available as alternatives. View Substitutes & Alternatives, datasheets, stock, pricing from Vemeko, as well as other FPGAs goods, at www.vemeko.com.

XC7336-15CWC44ACK Features

• Interconnect matrix at 100%

• High-speed arithmetic carry network with 18-bit accumulators operating at 43 to 61 MHz and a 1 ns ripple-carry latency per bit

• Several separate clocks

• Every input can be set to be registered, latched, or direct.

• 24 mA high-drive output with 3.3 V or 5 V I/O operation

• 3.3 V ±0.3 V JEDEC Standard (8-1A) is met.

• Options for power control

• Several security components to safeguard designs

• Equipped with design and verification tools that are industry standard

XC7336-15CWC44ACK Applications

• Automated manufacturing

• Portable ultrasound

• Industrial control

• Sensor fusion

• Vehicles and transportation

• Embedded vision

• Consumer electronics

• Medical devices

Product Availability Disclaimer

Product information on this page is provided for identification and sourcing reference purposes. A product listing does not indicate that VEMEKO currently holds physical inventory of the listed part number. Availability, manufacturer, source, date code, packaging, condition and lead time are confirmed separately at the quotation stage.

Trademark Notice

AMD, Xilinx, Zynq, Kintex, Virtex and other related trademarks are the property of Advanced Micro Devices, Inc. or its affiliates. VEMEKO is an independent electronic component sourcing company and is not represented as an authorized distributor of AMD unless expressly stated and documented for a specific transaction.

XC7336-15CWC44ACK Specifications
