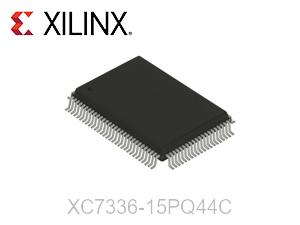

XC7336-15PQ44C

XC7336-15PQ44C Overview

The XC7336-15PQ44C is a high performance CPLD providing general purpose logic integration. It consists of four PAL-like 24V9 Fast Function Blocks interconnected by the 100% populated Universal Interconnect Matrix (UIMTM). The XC7336-15PQ44C is designed in 0.8 u CMOS EPROM technology, in speed grades ranging from 5 to 15 ns. The XC7336Q is also available now, providing lower power consumption in-10,-12 and-15 ns speed grades. View Substitutes & Alternatives, datasheets, stock, pricing from Vemeko, as well as other FPGAs goods, at www.vemeko.com.

XC7336-15PQ44C Features

• Fast function blocks and high-density function blocks comprise the advanced dual-block architecture (XC7354, XC7372, XC73108, XC73144).

• Interconnect matrix at 100%

• High-speed arithmetic carry network with 18-bit accumulators operating at 43 to 61 MHz and a 1 ns ripple-carry latency per bit

• Several separate clocks

• Every input can be set to be registered, latched, or direct.

• 24 mA high-drive output with 3.3 V or 5 V I/O operation

• 3.3 V ±0.3 V JEDEC Standard (8-1A) is met.

• Options for power control

• Several security components to safeguard designs

XC7336-15PQ44C Applications

• Medical devices

• Defense applications

• The embedded OEM

• Software defined radio

• Any-to-any connectivity

• Programmable logic controller

Product Availability Disclaimer

Product information on this page is provided for identification and sourcing reference purposes. A product listing does not indicate that VEMEKO currently holds physical inventory of the listed part number. Availability, manufacturer, source, date code, packaging, condition and lead time are confirmed separately at the quotation stage.

Trademark Notice

AMD, Xilinx, Zynq, Kintex, Virtex and other related trademarks are the property of Advanced Micro Devices, Inc. or its affiliates. VEMEKO is an independent electronic component sourcing company and is not represented as an authorized distributor of AMD unless expressly stated and documented for a specific transaction.

XC7336-15PQ44C Specifications
