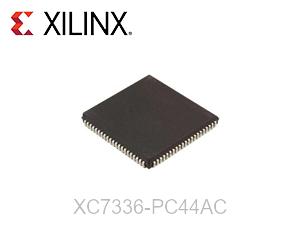

XC7336-PC44AC

XC7336-PC44AC Overview

The XC7336-PC44AC is a high performance CPLD providing general purpose logic integration. It consists of four PAL-like 24V9 Fast Function Blocks interconnected by the 100% populated Universal Interconnect Matrix (UIMTM). The XC7336-PC44AC is designed in 0.8 u CMOS EPROM technology, in speed grades ranging from 5 to 15 ns. The XC7336Q is also available now, providing lower power consumption in-10,-12 and-15 ns speed grades. The XC7336-PC44AC comes in pin-grid array (PGA), ball-grid array (BGA), and quad flat pack (QFP) packaging, as well as plastic and ceramic leaded chip carriers. Windowed ceramic packaging for design prototypes and one-time programmable plastic packaging for high production volumes are available as alternatives. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.

XC7336-PC44AC Features

• Interconnect matrix at 100%

• High-speed arithmetic carry network with 18-bit accumulators operating at 43 to 61 MHz and a 1 ns ripple-carry latency per bit

• Several separate clocks

• Every input can be set to be registered, latched, or direct.

• 24 mA high-drive output with 3.3 V or 5 V I/O operation

• 3.3 V ±0.3 V JEDEC Standard (8-1A) is met.

• Options for power control

• Several security components to safeguard designs

• Equipped with design and verification tools that are industry standard

• PCI compliance is 100%

XC7336-PC44AC Applications

• ADAS

• Industrial

• Consumer

• Defense and military

• Medical Endoscope

• Small Cell Baseband

• Machine vision camera

• Automated manufacturing

XC7336-PC44AC Specifications
