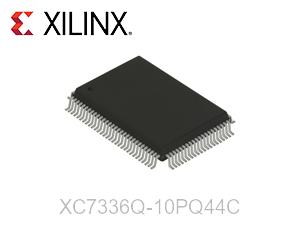

XC7336Q-10PQ44C

XC7336Q-10PQ44C Overview

The XC7336Q-10PQ44C is a high performance CPLD providing general purpose logic integration. It consists of four PAL-like 24V9 Fast Function Blocks interconnected by the 100% populated Universal Interconnect Matrix (UIMTM). The XC7336Q-10PQ44C is designed in 0.8 u CMOS EPROM technology, in speed grades ranging from 5 to 15 ns. The XC7336Q is also available now, providing lower power consumption in-10,-12 and-15 ns speed grades. The XC7336Q-10PQ44C comes in pin-grid array (PGA), ball-grid array (BGA), and quad flat pack (QFP) packaging, as well as plastic and ceramic leaded chip carriers. Windowed ceramic packaging for design prototypes and one-time programmable plastic packaging for high production volumes are available as alternatives. View Substitutes & Alternatives, datasheets, stock, pricing from Vemeko, as well as other FPGAs goods, at www.vemeko.com.

XC7336Q-10PQ44C Features

• Real 6-input lookup table (LUT)-based advanced high-performance FPGA logic that may be configured as distributed memory.

• Block RAM with a built-in FIFO for on-chip data buffering, 36 Kb, twin ports.

• High-speed SelectIOTM technology that is compatible with DDR3 connections of up to 1,866 Mb/s.

• High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.

• A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.

• DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.

• Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.

• Utilize the MicroBlazeTM processor to quickly install embedded processing.

XC7336Q-10PQ44C Applications

• Consumer

• Automotive

• Defense and military

• Medical Endoscope

• Small Cell Baseband

• Machine vision camera

• Portable ultrasound

• Industrial control

Product Availability Disclaimer

Product information on this page is provided for identification and sourcing reference purposes. A product listing does not indicate that VEMEKO currently holds physical inventory of the listed part number. Availability, manufacturer, source, date code, packaging, condition and lead time are confirmed separately at the quotation stage.

Trademark Notice

AMD, Xilinx, Zynq, Kintex, Virtex and other related trademarks are the property of Advanced Micro Devices, Inc. or its affiliates. VEMEKO is an independent electronic component sourcing company and is not represented as an authorized distributor of AMD unless expressly stated and documented for a specific transaction.

XC7336Q-10PQ44C Specifications
