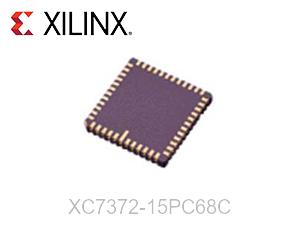

XC7372-15PC68C

XC7372-15PC68C Overview

The XC7372-15PC68C comes in pin-grid array (PGA), ball-grid array (BGA), and quad flat pack (QFP) packaging, as well as plastic and ceramic leaded chip carriers. Windowed ceramic packaging for design prototypes and one-time programmable plastic packaging for high production volumes are available as alternatives. The XC7372-15PC68C Devices have a special Dual-Block design that allows for high density capability via High Density Function Blocks and/or high speed operations via Fast Function Blocks. For crucial decoding and ultrafast state machine applications, Fast Function Blocks (FFBs) offer fast, pin-to-pin speed and logic throughput. For adders, accumulators, wide functions, state machines needing a large number of product terms, and other types of complicated logic, High-Density Function Blocks (FBs) offer the maximum logic density and system-level functionality to construct complex functions with predictable time. The Universal Interconnect Matrix (UIM), which ensures 100% interconnectivity of all internal processes, is also utilized by the XC7372-15PC68C architecture. For any routing path across the UIM, this interconnect architecture offers consistent, brief connectivity delays. Constant connectivity delays, independent of logic arrangement within the chip, simplify device timing and ensure design performance. View Substitutes & Alternatives, datasheets, stock, pricing from Vemeko, as well as other FPGAs goods, at www.vemeko.com.

XC7372-15PC68C Features

• Erasable Programmable Logic Devices (EPLDs) with high performance: 5 / 7.5 ns pin-to-pin speeds on all fast inputs; maximum clock frequency of 167 MHz

• Fast function blocks and high-density function blocks comprise the advanced dual-block architecture (XC7354, XC7372, XC73108, XC73144).

• Interconnect matrix at 100%

• High-speed arithmetic carry network with 18-bit accumulators operating at 43 to 61 MHz and a 1 ns ripple-carry latency per bit

• Several separate clocks

• Every input can be set to be registered, latched, or direct.

XC7372-15PC68C Applications

• Medical Endoscope

• Small Cell Baseband

• Professional Cameras

• Machine Vision

• Carrier Ethernet Backhaul

• Multi-function Printers

• Multi-Axis Motor Control

• Machine Vision

• Programmable Logic Controller

Product Availability Disclaimer

Product information on this page is provided for identification and sourcing reference purposes. A product listing does not indicate that VEMEKO currently holds physical inventory of the listed part number. Availability, manufacturer, source, date code, packaging, condition and lead time are confirmed separately at the quotation stage.

Trademark Notice

AMD, Xilinx, Zynq, Kintex, Virtex and other related trademarks are the property of Advanced Micro Devices, Inc. or its affiliates. VEMEKO is an independent electronic component sourcing company and is not represented as an authorized distributor of AMD unless expressly stated and documented for a specific transaction.

XC7372-15PC68C Specifications
