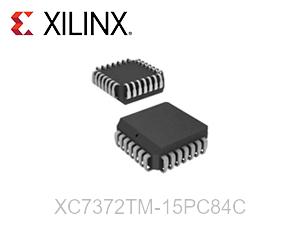

XC7372TM-15PC84C
The XC7372TM-15PC84C Devices have a special Dual-Block design that allows for high density capability via High Density Function Blocks and/or high speed operations via Fast Function Blocks. For crucial decoding and ultrafast state machine applications, Fast Function Blocks (FFBs) offer fast, pin-to-pin speed and logic throughput. For adders, accumulators, wide functions, state machines needing a large number of product terms, and other types of complicated logic, High-Density Function Blocks (FBs) offer the maximum logic density and system-level functionality to construct complex functions with predictable time. The Universal Interconnect Matrix (UIM), which ensures 100% interconnectivity of all internal processes, is also utilized by the XC7372TM-15PC84C architecture. For any routing path across the UIM, this interconnect architecture offers consistent, brief connectivity delays. Constant connectivity delays, independent of logic arrangement within the chip, simplify device timing and ensure design performance. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Real 6-input lookup table (LUT)-based advanced high-performance FPGA logic that may be configured as distributed memory.
Block RAM with a built-in FIFO for on-chip data buffering, 36 Kb, twin ports.
High-speed SelectIOTM technology that is compatible with DDR3 connections of up to 1,866 Mb/s.
High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.
A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.
DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
Multi-Axis Motor Control
Machine Vision
Programmable Logic Controller
| Specification | Value |
|---|---|
| Typical 22V10 Equivalent | 8 |
| Number of Macrocells | 72 |
| Number of Function Blocks | 8 |
| Number of Flip-Flops | 126 |
| Number of Fast Inputs | 12 |
| Number of Signal Pins | 84 |
