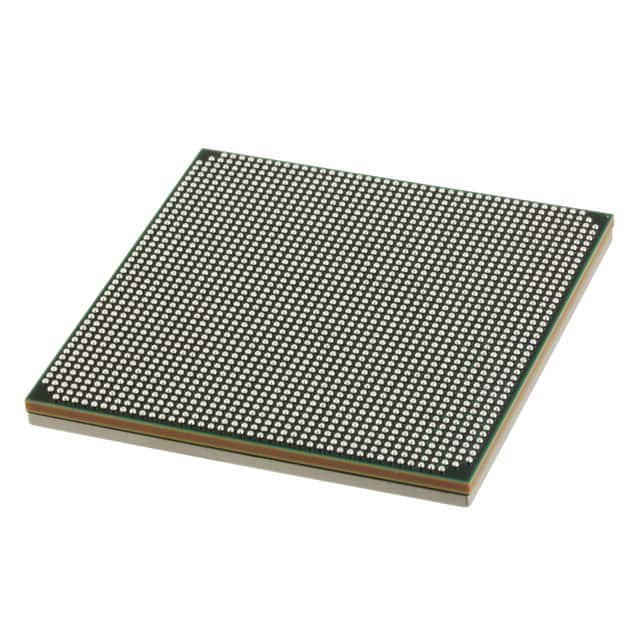

XC7V2000T-1FHG1761C

XC7V2000T-1FHG1761C Overview

The XC7V2000T-1FHG1761C FPGA is available in speed classes of -3, -2, -1, and -2L, with -3 having the best performance. The -2L devices are screened for lower maximum static power and operate at VCCINT = 1.0V. A -2L device has the same speed specification as a -2 speed grade. Devices implementing Stacked Silicon Interconnect (SSI) technology are capable of the -2G speed grade. The -2G speed grade enables 12.5 Gb/s GTX or 13.1 Gb/s GTH transceivers in addition to meeting the requirements for the -2 speed grade.

The DC and AC properties of this XC7V2000T-1FHG1761C are specified for use in commercial, extended, industrial, and military temperature ranges. All DC and AC electrical properties are the same for a specific speed grade, with the exception of the working temperature range or unless otherwise specified (for example, the timing characteristics of a -1M speed grade military device are the same as those of a -1C speed grade commercial device). In each temperature range, however, only a few speed grades and/or devices are offered. The requirements for junction temperature and supply voltage are all based on the worst-case scenario. The parameters are applicable to common applications and popular designs.

XC7V2000T-1FHG1761C Features

• Xilinx EHCI compliant USB host

• 8-bit ULPI external PHY interface

• Two full CAN 2.0B compliant CAN bus interfaces

• CAN 2.0-A and CAN 2.0-B and ISO 118981-1 standard compliant

• External PHY interface

• Two full-duplex SPI ports with three peripheral chip selects

• Two high-speed UARTs (up to 1 Mb/s)

• Two SD/SDIO 2.0/MMC3.31 compliant controllers

• Two master and slave I2C interfaces

• GPIO with four 32-bit banks, of which up to 54 bits can be used with the PS I/O (one bank of 32b and one bank of 22b) and up to 64 bits(up to two banks of 32b) connected to the Programmable Logic

• Up to 54 flexible multiplexed I/O (MIO) for peripheral pin assignments

XC7V2000T-1FHG1761C Applications

• Automotive driver assistance

• Driver information

• Infotainment

• Broadcast camera

• Medical diagnostics and imaging

• Industrial motor control, industrial networking, and machine vision

• IP and Smart camera

• Video and night vision equipment

• LTE radio and baseband

Product Availability Disclaimer

Product information on this page is provided for identification and sourcing reference purposes. A product listing does not indicate that VEMEKO currently holds physical inventory of the listed part number. Availability, manufacturer, source, date code, packaging, condition and lead time are confirmed separately at the quotation stage.

Trademark Notice

AMD, Xilinx, Zynq, Kintex, Virtex and other related trademarks are the property of Advanced Micro Devices, Inc. or its affiliates. VEMEKO is an independent electronic component sourcing company and is not represented as an authorized distributor of AMD unless expressly stated and documented for a specific transaction.

XC7V2000T-1FHG1761C Specifications
