XC7V585T-1FF1761I

XC7V585T-1FF1761I Overview

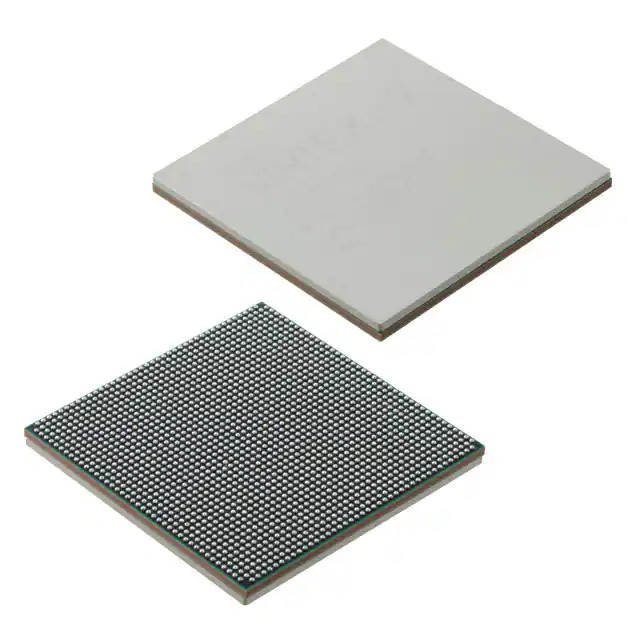

A Virtex®-7 T FPGA IC called the XC7V585T-1FF1761I was created for embedded applications. This integrated circuit comprises 850 I/Os, 45525 LABs/CLBs, and 582720 logic cells. Additionally, it has a voltage supply range of 0.97V to 1.03V and a total RAM size of 29306880 bits. The XC7V585T-1FF1761I has a temperature range of -40°C to 100°C (TJ) and is offered in a 1760-BBGA, FCBGA package. This IC is made by AMD Xilinx and can be used in a variety of applications.

The XC7V585T-1FF1761I with the fastest performance is available in speed classes of -3, -2, -1, and -2L. The -2L devices run at VCCINT = 1.0V and are screened for lower maximum static power. The speed parameter for a -2L device is the same as for a -2 speed grade. The -2G speed grade can be reached by devices using Stacked Silicon Interconnect (SSI) technology. In addition to fulfilling the standards for the -2 speed grade, the -2G speed grade supports 12.5 Gb/s GTX or 13.1 Gb/s GTH transceivers.

XC7V585T-1FF1761I Features

• CoreSight™ and Program Trace Macrocell (PTM)

• Timer and Interrupts

• Three watchdog timers

• One global timer

• Two triple-timer counters

• Two 10/100/1000 tri-speed Ethernet MAC peripherals with IEEE Std 802.3 and IEEE Std 1588 revision 2.0 support

• Scatter-gather DMA capability

• Recognition of 1588 rev. 2 PTP frames

• GMII, RGMII, and SGMII interfaces

• Two USB 2.0 OTG peripherals, each supporting up to 12 Endpoints

• USB 2.0 compliant device IP core

XC7V585T-1FF1761I Applications

• Industrial motor control, industrial networking, and machine vision

• IP and Smart camera

• Video and night vision equipment

• LTE radio and baseband

• Multifunction printers

• Multi-Axis Motor Control

• Machine Vision

• Programmable Logic Controller
