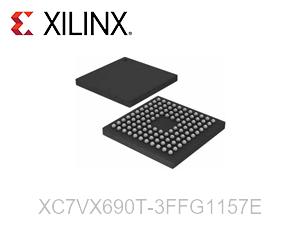

XC7VX690T-3FFG1157E

XC7VX690T-3FFG1157E Overview

Xilinx XC7VX690T-3FFG1157E from AMD is an integrated circuit which fits into the Field Programmable Gate Array (FPGA) category. The XC7VX690T-3FFG1157E FPGAs from Xilinx cover the full spectrum of system needs, from low cost, small form factor, cost-sensitive, high volume applications to ultra high-end connectivity bandwidth, logic capacity, and signal processing ability for the high reliability needs beyond commercial applications. This device offers a fully programmable alternative to ASSPs and ASICs. They are built on a cutting-edge, high-performance, low-power (HPL), 28 nm, high-k metal gate (HKMG) process technology. They enable an unprecedented increase in system performance with 1.4 Tb/s of I/O bandwidth, 980K logic cell capacity, and 4.7 TMAC/s DSP. Virtex-7, MMCM, PLL, 600 I/Os, 741 MHz, 693120 Cells, 970 mV to 1.03 V, FCBGA-1927 are all features of the Xilinx FPGAs (Field Programmable Gate Array) series XC7VX690T-3FFG1157E. View Substitutes & Alternatives, datasheets, stock, pricing from Vemeko, as well as other FPGAs goods, at www.vemeko.com.

XC7VX690T-3FFG1157E Features

• Integrated PCI Express® (PCIe) block: The integrated PCI Express® (PCIe) block supports up to x8 Gen3 Endpoint and Root Port designs.

• Powerful clock management tiles (CMT): The powerful clock management tiles (CMT) integrate mixed-mode clock manager (MMCM) and phase-locked loop (PLL) blocks for high precision and minimal jitter.

• Dual 12-bit 1MSPS analog-to-digital converters: The dual 12-bit 1MSPS analog-to-digital converters with on-chip supply and heat sensors make up the user-configurable analog interface (XADC).

• Built on low-power (HPL), 28nm, high-k metal gate (HKMG) process technology

• Up to 2M logic cells, VCXO component, AXI IP, and AMS integration

• Up to 2.8TB/s total serial bandwidth with up to 96 x 13.1G GTs, up to 16 x 28.05G GTs, 5,335 GMACs, 68Mb BRAM, DDR3-1866

XC7VX690T-3FFG1157E Applications

Embedded vision

Consumer electronics

Medical devices

Defense applications

The embedded OEM

Software defined radio

Any-to-any connectivity

Programmable logic controller

Product Availability Disclaimer

Product information on this page is provided for identification and sourcing reference purposes. A product listing does not indicate that VEMEKO currently holds physical inventory of the listed part number. Availability, manufacturer, source, date code, packaging, condition and lead time are confirmed separately at the quotation stage.

Trademark Notice

AMD, Xilinx, Zynq, Kintex, Virtex and other related trademarks are the property of Advanced Micro Devices, Inc. or its affiliates. VEMEKO is an independent electronic component sourcing company and is not represented as an authorized distributor of AMD unless expressly stated and documented for a specific transaction.

XC7VX690T-3FFG1157E Specifications
