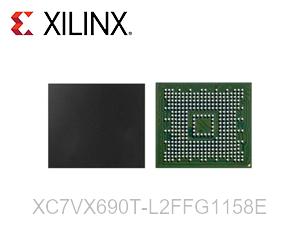

XC7VX690T-L2FFG1158E

XC7VX690T-L2FFG1158E Overview

The XC7VX690T-L2FFG1158E is an embedded field programmable gate array (FPGA) from the Virtex-7 XT series. A normal package amount of 1 piece is included in the tray packaging. With 350 I/Os and 54150 LABs/CLBs, this FPGA has 350 I/Os in total. Its overall RAM size is 54190080 bits, and it has 693120 logic elements/cells. From 0.97V to 1.03V is the voltage supply range. With a supplier device package of 1158-FCBGA (35x35), the XC7VX690T-L2FFG1158E is surface mount installed and comes in a 1156-BBGA, FCBGA package. The equipment can operate between 0°C and 100°C. This FPGA is made by AMD and is typically used in high-performance computing, telecommunications, and other applications that call for intricate digital processing. View Substitutes & Alternatives, datasheets, stock, pricing from Vemeko, as well as other FPGAs goods, at www.vemeko.com.

XC7VX690T-L2FFG1158E Features

• A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.

• DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.

• Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.

• Utilize the MicroBlazeTM processor to quickly install embedded processing.

• PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.

• Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.

• Flip-chip packaging that is low-cost, wire-bonded, bare-die, and high signal integrity and allows for simple family migration in the same package. Both Pb-free versions of all packages and Pb versions of some packages are offered.

XC7VX690T-L2FFG1158E Applications

• Networking equipment

• Industrial control

• Consumer electronics

• Medical devices

• Defense applications

• Industrial

• Automotive

• Any-to-any connectivity
