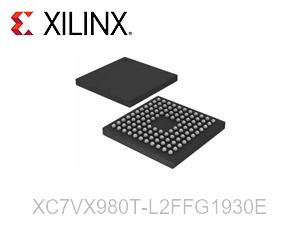

XC7VX980T-L2FFG1930E

XC7VX980T-L2FFG1930E Overview

FPGA XC7VX980T-L2FFG1930E is an integrated circuit that fall under the AMD Xilinx category. The XC7VX980T-L2FFG1930E FPGAs from Xilinx cover the full spectrum of system needs, from low cost, small form factor, cost-sensitive, high volume applications to ultra high-end connectivity bandwidth, logic capacity, and signal processing ability for the high reliability needs beyond commercial applications. The XC7VX980T-L2FFG1930E FPGAs, which offer a fully programmable alternative to ASSPs and ASICs, are built on a cutting-edge, high-performance, low-power (HPL), 28 nm, high-k metal gate (HKMG) process technology. They enable an unprecedented increase in system performance with 1.4 Tb/s of I/O bandwidth, 980K logic cell capacity, and 4.7 TMAC/s DSP. Virtex-7, MMCM, PLL, 600 I/Os, 741 MHz, 693120 Cells, 970 mV to 1.03 V, FCBGA-1927 are all features of the Xilinx FPGAs (Field Programmable Gate Array) series XC7VX980T-L2FFG1930E. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.

XC7VX980T-L2FFG1930E Features

• Real 6-input lookup table (LUT)-based advanced high-performance FPGA logic that may be configured as distributed memory.

• Block RAM with a built-in FIFO for on-chip data buffering, 36 Kb, twin ports.

• High-speed SelectIOTM technology that is compatible with DDR3 connections of up to 1,866 Mb/s.

• High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.

• A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.

• DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.

• Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.

• Utilize the MicroBlazeTM processor to quickly install embedded processing.

• PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.

XC7VX980T-L2FFG1930E Applications

• ADAS

• Medical Endoscope

• Small Cell Baseband

• Professional Cameras

• Machine Vision

• Carrier Ethernet Backhaul

• Multi-function Printers

• Multi-Axis Motor Control

XC7VX980T-L2FFG1930E Specifications
