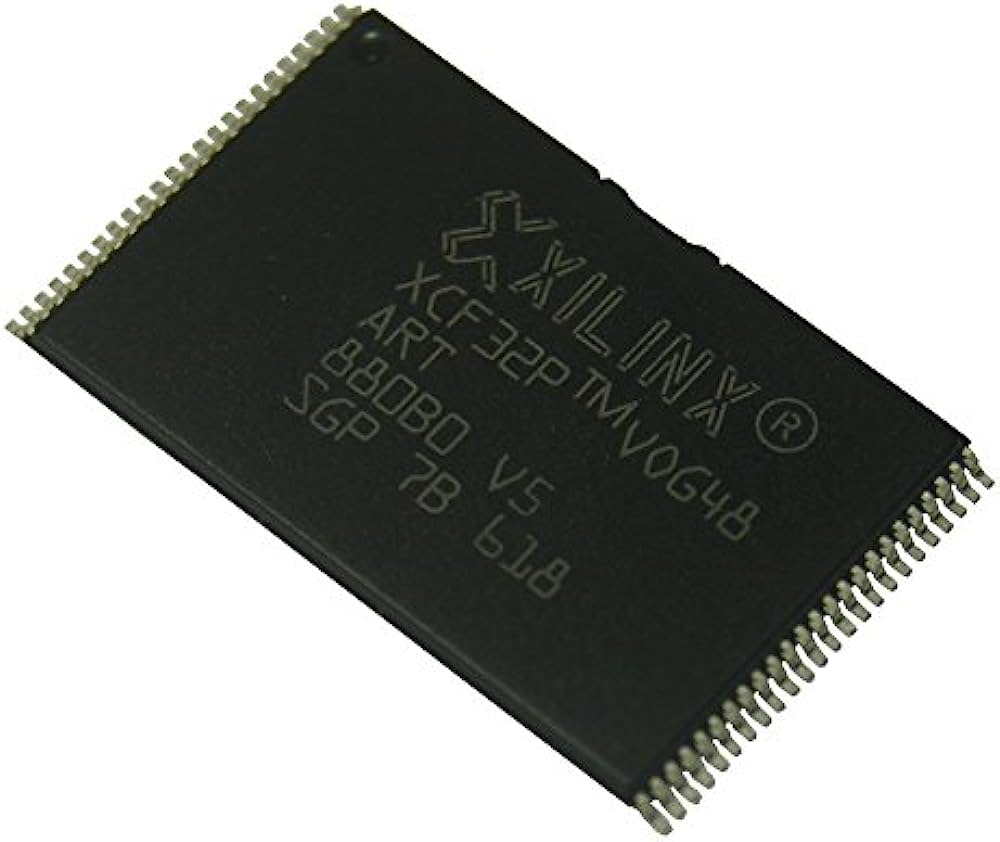

Xilinx XCF32PVOG48C - Configuration Memory Device

Overview:The XCF32PVOG48C is a 32 Mb non-volatile serial configuration memory used to store the FPGA bitstream for devices like Spartan-3 and Virtex-4 series. This configuration memory is typically used to configure the FPGA devices automatically when powered up or reset, ensuring proper operation of the system. The device uses a high-speed serial interface (SPI) to communicate with the FPGA.

Key Features:

• Large Storage Capacity: Offers 32Mb (megabits) of storage, providing ample space for large bitstreams and multiple configurations.
• High-Speed SPI Interface: Features a fast Serial Peripheral Interface (SPI), allowing for quick and efficient bitstream loading.
• Non-volatile Memory: Retains configuration data even when power is removed, making it ideal for applications requiring persistent configuration.
• Wide Operating Voltage Range: Compatible with voltage ranges between 2.5V to 3.6V, offering flexibility for various designs.
• Low Power Consumption: Optimized for low power, making it suitable for energy-efficient applications.
• Temperature Range: Designed to operate in industrial and commercial environments with a temperature range of -40°C to +100°C.
• Package Type: 48-pin TQFP (Thin Quad Flat Package), which allows for compact integration into various PCB designs.

Technical Specifications:

• Memory Size: 32Mb (megabits)
• Interface: SPI (Serial Peripheral Interface)
• Voltage Range: 2.5V to 3.6V
• Operating Temperature: -40°C to +100°C
• Package Type: 48-pin TQFP (Thin Quad Flat Package)
• Speed: Optimized for use with Virtex-4 and Spartan-3 series FPGAs, ensuring fast and reliable configuration.

Applications:

The XCF32PVOG48C is ideal for use in a range of applications, including:

• Embedded Systems: Used to store configuration data for FPGAs in embedded control systems.
• Networking Equipment: Ideal for configuring FPGAs in routers, switches, and other networking devices.
• Industrial Automation: Frequently used in manufacturing, process control, and automation systems where reconfigurable logic is necessary.
• Consumer Electronics: Used in devices requiring customizable hardware functions like video processing, data conversion, or signal processing.

Real-World Use Cases:

1. Embedded and Automotive Control Systems: The XCF32PVOG48C is used to load custom FPGA configurations that control various subsystems, from communication protocols to data processing algorithms.
2. Networking Devices: Used in high-performance networking equipment like switches and routers, where FPGA configuration is critical for handling complex packet processing.
3. Data Acquisition Systems: Configures FPGAs in systems that capture and process large amounts of data in industrial and scientific applications.

Compatibility and Integration:

• Compatible with Xilinx FPGAs: The XCF32PVOG48C works seamlessly with Virtex-4, Spartan-3, and compatible Xilinx FPGA families.
• Simple Integration: Can be integrated into your design using the standard SPI interface, making it easy to implement in your existing system using Xilinx ISE or Vivado for configuration.

FAQs:

Q: What FPGAs are compatible with the XCF32PVOG48C?

A: The XCF32PVOG48C is primarily designed for Virtex-4 and Spartan-3 FPGA families. For other families, you should verify compatibility based on specific requirements.

Q: What is the typical application for the XCF32PVOG48C?

A: This device is typically used in embedded systems, networking, industrial automation, and other applications that require FPGA configuration storage.

Q: Can the XCF32PVOG48C be used in other temperature ranges?

A: The XCF32PVOG48C operates within a temperature range of -40°C to +100°C, which is ideal for most industrial and commercial applications. For more extreme environments, refer to other Xilinx memory options.
